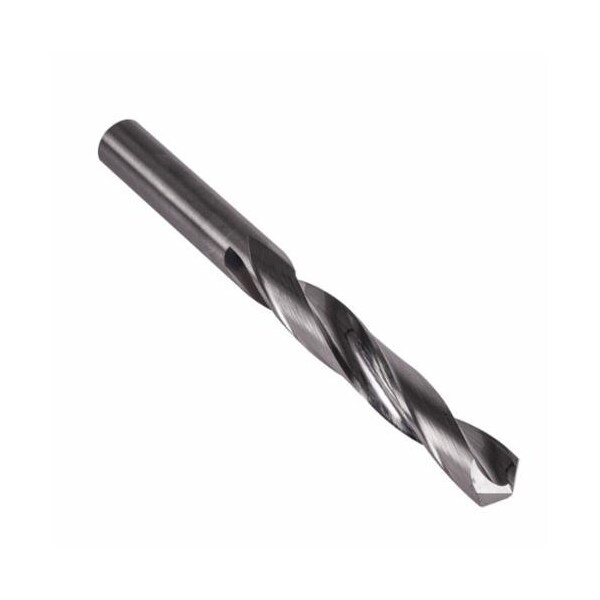

D33L GENERAL PURPOSE STANDARD LENGTH JOBBER LENGTH DRILL BIT, U DRILL
Mfr # 6002403
Zoro # G622801563
product price:Â $132.99
/ea
Free Shipping & Returns
Key Features
Overall Length
4-1/4 in
Height
0.47 in
Width
0.47 in
Type
General Purpose Standard Length
Primary Material Application
Lamellar Graphite, Nodular Graphite, Malleable Cast Iron, Brass, Bronze, Thermoplastic, Thermosetting Plastic, Plain Carbon Steel, Alloy Steel, Hardened and Tempered Steel, Abrasive and Non-Ferrous Materials
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
6002403
Zoro #
G622801563
UPC #
00086071036094
Country of Origin
United States
Dimensions
Overall Length
4-1/4 in
Height
0.47 in
Width
0.47 in
Drilling Depth
3XD
Shank Size
0.368 in
Flute Length
2-3/4 in
Details
Item
Jobber Length Drill Bits
Type
General Purpose Standard Length
Primary Material Application
Lamellar Graphite, Nodular Graphite, Malleable Cast Iron, Brass, Bronze, Thermoplastic, Thermosetting Plastic, Plain Carbon Steel, Alloy Steel, Hardened and Tempered Steel, Abrasive and Non-Ferrous Materials
Number of Flutes
2
Measurement System
Imperial
Drill Bit Point Angle
118°
Material - Machining
Carbide
Drill Bit Point Type
4-Facet/Self-Centering
Finish - Machining
Uncoated
Shank Type - Machining
Straight
Flute Type
Spiral
Series
D33L
Description
Precision Twist Drill 6002403 D33L General Purpose Standard Length Jobber Length Drill Bit, U Drill
- Low thrust design
