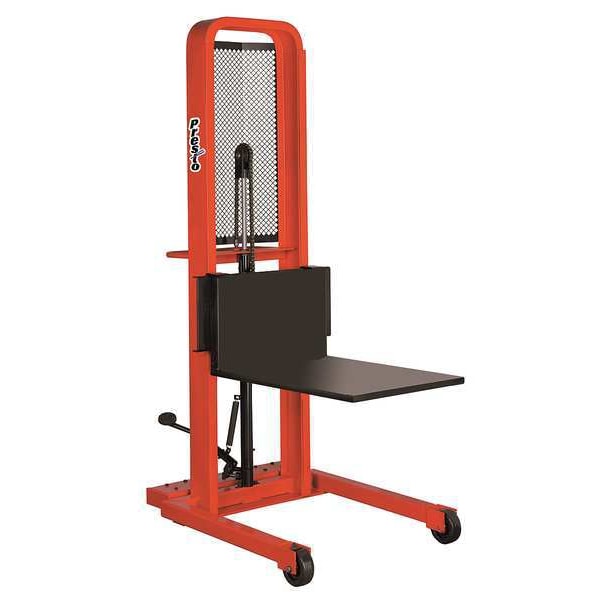

Manual Hand-Truck-Style Platform Lift, Manual, 1,000 lb Load Capacity, Foot Pump Lift Control (Discontinued)
- Mfr # M152
- Zoro # G1830906
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
M152
Zoro #
G1830906
UPC #
-
Country of Origin
United States
Dimensions
Overall Height
66 in
Overall Length
53 1/2 in
Overall Width
25 in
Platform Length
24 in
Front Wheel Dia.
5 in
Base Legs Inside Dia.
15-1/4"
Base Legs Outside Dia.
22-1/4"
Platform Width
24 in
Lifting Height Min.
5 1/2 in
Rear Caster Dia.
4 in
Rear Wheel Dia.
3"
Lifting Height Forks Up
52"
Lifting Height Max.
52 in
Lifting Height Forks Down
5 1/4 in
Axle Dia.
1/2 in
Base Inside Width
15 1/4 in
Lifting Height per Pump
1 1/8 in
Platform LxW
24 in x 24 in
Minimum Lifting Height
5 1/2 in
Caster Wheel Width
2 in
Stowed Length
38 in
Lifting Height Range
5 1/2 in to 52 in
Caster Mounting Plate Size
5 in x 5 1/2 in
Turning Radius
48 in
Overall Height with Platform Lowered
66 3/8 in
Caster Mounting Height
5 in
Caster Stem Length
1/2 in
Maximum Lifting Height
52 in
Base Outside Width
24 1/8 in
Caster Wheel Dia.
4 in
Handle Height
43 in
Caster Stem Diameter
1 in
Overall Height with Platform Raised
66 3/8 in
Axle-Mounted Wheel Dia.
5 in
Overall LxWxH
53 1/2 in x 25 in x 66 3/8 in
Stowed Height
66 3/8 in
Description
Manual Hand-Truck-Style Platform Lift, Load Capacity 1,000 lb, Minimum Lifting Height 5 1/2 in, Maximum Lifting Height 52 in, Platform Length 24 in, Platform Width 24 in, Lift Control Foot Pump, Lift Mechanism Hydraulic, Base Style Fixed, Base Inside Width 15 1/4 in, Base Outside Width 24 1/8 in, Frame Finish Powder Coated, Frame Type Flat Back, Load Center 15 in, Overall Height with Platform Raised 66 3/8 in, Overall Length 53 1/2 in, Overall Width 25 in, Frame Material Steel
