1-1/2 in. Steel Ball Bearing Sliding Door Roller Assembly Single Pack
Mfr # D 1588
Zoro # G700935173
product price:
$
8.15
/ea
Key Features
Material
Stamped steel
Finish
Yellow Zinc
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D 1588
- Zoro #
- G700935173
- UPC #
- 49793015884
- Country of Origin
- United States
Details
- Material
- Stamped steel
- Finish
- Yellow Zinc
Description

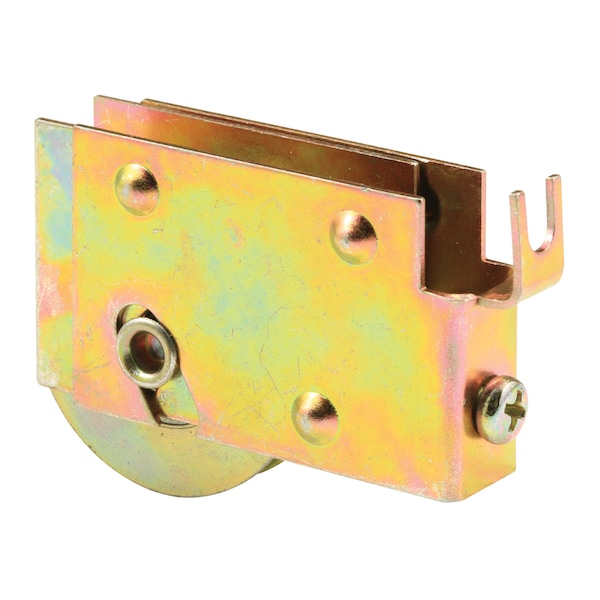

This is a C-tab patio door roller assembly with a 1-1/2 inch concave steel ball bearing roller. As the C-tab is positioned around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 inch wide and 1-3/8 inch tall with a 3/4 inch dimple width. Used on Window Master patio doors. It replaces the original K-tab style that is no longer available.
- •Used on Window Master sliding patio doors
- •As the C-tab is positioned around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together
- •1-1/2 inch diameter concave roller
- •Stamped steel housing and roller
- •C-tab
- •Rear adjusting screw
- •A Phillips head screwdriver is required for installation
- •Please refer to the line art drawing and compare with your original item before purchasing
