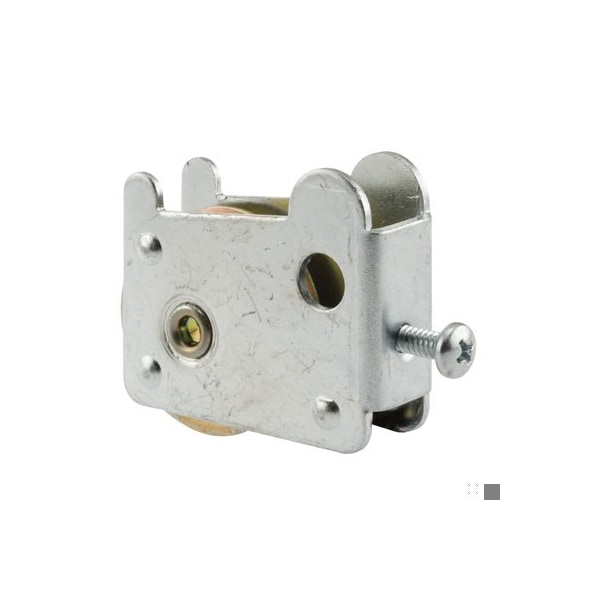

1-1/2 in. Steel, Sliding Door Tandem Roller Assembly, for Rolleze Glass Doors (Single Pack)

This is a unique housing patio door roller assembly. It is 23/32 inch wide, 1-7/8 inch tall and 2-1/8 inch long with a 1-1/4 inch diameter steel ball bearing roller. To install, remove the screw from the back and insert the assembly into the bottom rail end. Replace side stile, insert screw and into assembly. As the screw draws the roller's backside tighter, the design causes the front end to rotate downward and the door to lift to the desired height. Used by Rolleze or Rylock.

• • Used by Rolleze Glass, Rylock and a variety of sliding patio doors
• • Insert the roller into the bottom rail without the screw, replace the side stile, as the screw draws the roller's bottom backside tighter, the design causes the far end to rotate downward causing the roller to lift the door to the desired height
• • 1-1/2 inch diameter ball bearing roller
• • Galvanized stamped steel construction and steel roller
• • Used on metal framed sliding patio doors
• • Allows smooth sliding operation of patio door
• • A Phillips head screwdriver is required for installation
• • Please refer to the line art drawing and compare with your original item before purchasing
