1-1/4 in., for Crossly Steel Ball Bearing Sliding Door Roller Assembly (Single Pack)

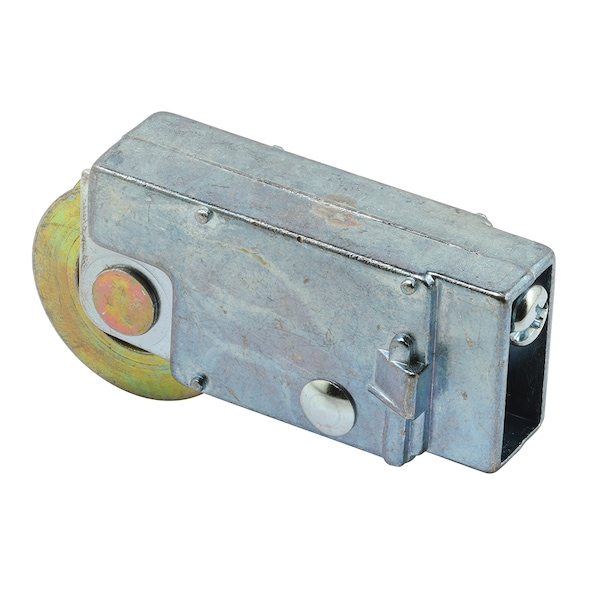

This is an unique back diecast patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller used on Crossly doors. It's unique diecast housing is 11/16 in. stepping down to 9/16 in. wide, 1-1/8 in. tall and 2-5/16 in. long with a flare width of 3/4 in.. The 9/16 in. wide rear design of the housing fits into the door rail held in place by a screw that engages the mounting hole in the back end. The adjustment screw is just above the mounting hole.

Used by Crossly Patio Doors

Unique style housing

1-1/4 in. diameter concave steel roller

Diecast housing construction with ball bearing roller

Features rear screw adjustment

Used on metal framed sliding patio doors

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
