1-1/4 in. Nylon Ball Bearing Sliding Door Roller Assembly, for Lupton (Single Pack)

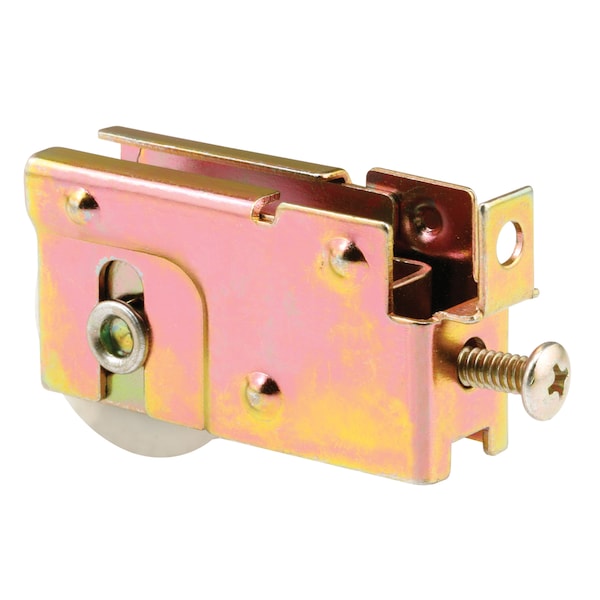

This is a F-tab patio door roller assembly with a 1-1/4 in. concave nylon ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-3/16 in. tall with a 7/8 in. dimple width. Used by Lupton and a variety of sliding patio door manufacturers.

Used by Lupton and a variety of sliding patio door manufacturers

When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together

1-1/4 in. concave roller

Steel housing and ball bearing roller

F-tab rear adjusting screw

Used on metal framed patio doors

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
