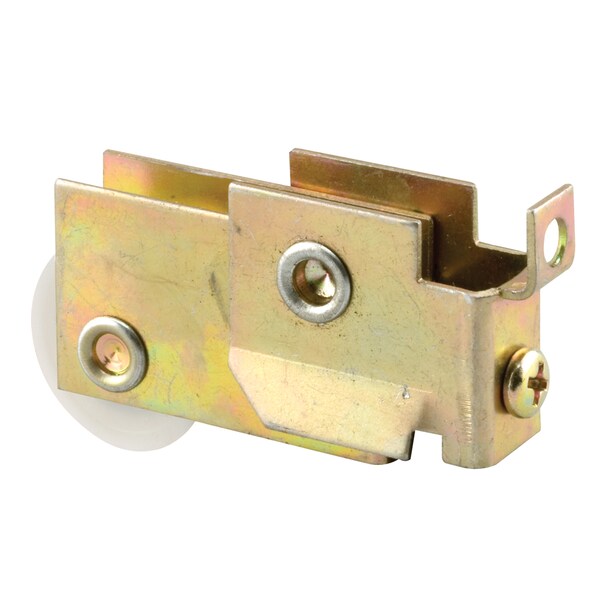

1-1/4 in. Nylon Ball Bearing Sliding Door Roller Assembly (Single Pack)

This is a F-tab patio door roller assembly with a 1-1/4 in. concave nylon ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide with a 3/4 in. flare, 1-1/16 in. tall and a rear adjusting screw. Used by King Mirror and a variety of other patio door manufacturers.

Used by King Mirror and a variety of other patio door manufacturers

When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together

1-1/4 in. diameter ball bearing roller

Stamped steel housing and nylon roller

F-tab housing

Rear adjusting screw

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
