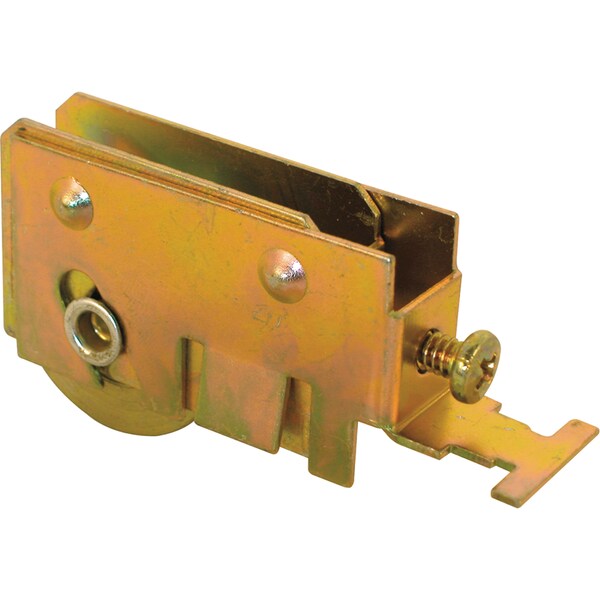

1-1/4 in. Sliding Door Ball Bearing Roller Assembly (Single Pack)

This is a K-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. The T-shaped tab (K-Tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required. The housing is 5/8 in. wide and 1-3/16 in. tall with a flare and a 3/4 in. dimple width. Used by International and a variety of other sliding patio door manufacturers.

Used by International Windows Corporation and a variety of other sliding patio door manufacturers

K-tab style housing

1-1/4 in. diameter concave steel roller

Stamped steel housing with ball bearing roller

Features rear screw adjustment

Used on metal framed sliding patio doors

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
