1-1/4 in. Stamped Steel Roller Assembly, Unique Housing (Single Pack)

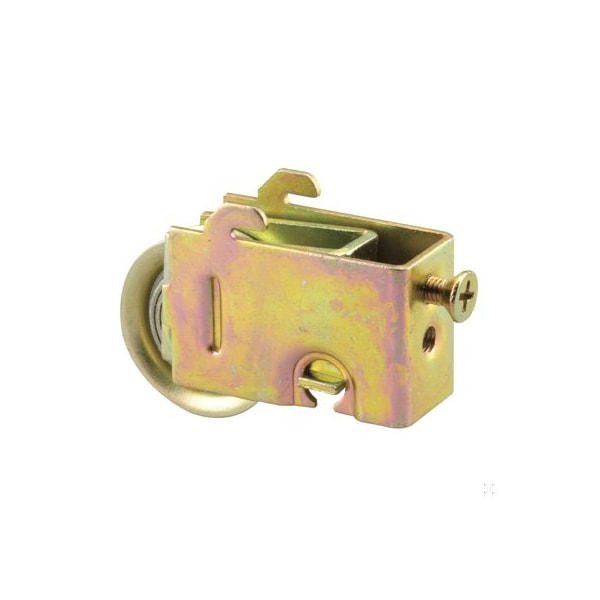

This is a unique back, patio door roller assembly with a 1-1/4 inch concave, or grooved, steel ball bearing roller. The housing is 13/16 inch wide and 1-1/8 inch tall. It is rear adjusting with a 1/4-20 threaded mounting hole and mounting tabs, or ears, on the front end of the assembly. As the mounting screw engages the assembly, the ears or tabs latch onto an extruded area in the door's bottom rail. Usually used by Noranda Building Products, Noranda, Three Rivers Aluminum, Bee Cee, and a variety of other manufacturers.

• • Used by Noranda Building Products, Noranda, Three Rivers Aluminum and Bee Cee, as well as a variety of other manufacturers
• • As the mounting screw engages the assembly, the ears or tabs latch onto an extruded area in the door's bottom rail
• • Unique housing with a rear adjusting screw
• • Stamped steel housing with a ball bearing rollers
• • 1-1/4 inch concave steel roller
• • Easy to install in less than 30 minutes with a few simple tools
• • A Phillips head screwdriver is required for installation
• • Please refer to the line art drawing and compare with your original item before purchasing
