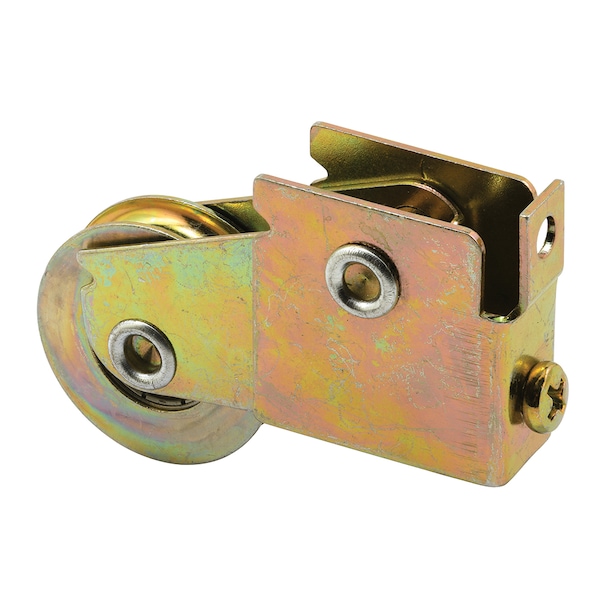

1-1/4 in. Steel Ball Bearing, F-Tab Style Rollers (Single Pack)

This is an F-tab patio door roller assembly with a 1-1/4 in. concave ball bearing roller that replaces the Old Style design. Used on Sun Valley, Fullview, Glasco and a variety of other sliding patio door manufacturers. When the corner screw passes through the "F" tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide and 1-9/32 in. tall, with a rear adjusting screw.

Used by Sun Valley, Fullview, Glasco and a variety of other metal sliding patio door manufacturers

When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together

Rear adjustment screw

Stamped steel housing with a ball bearing rollers

1-1/4 in. concave steel roller

Replaces old style F style assemblies that slid into an extruded channel in the bottom rail

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
