Shop PRIME-LINE

1-1/4 in. Steel Ball Bearing Sliding Door Roller Assembly, for Northrup (Single Pack)

  • Mfr # D 1584

  • Zoro # G300935108

product price:
$
11.39
/ea

Key Features

Max Wheel Dia.
1-1/4 in
Finish
Yellow Zinc
Bearings
ball bearing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D 1584
Zoro #
G300935108
UPC #
49793015846
Country of Origin
China

Dimensions

Max Wheel Dia.
1-1/4 in

Details

Finish
Yellow Zinc
Bearings
ball bearing

Description

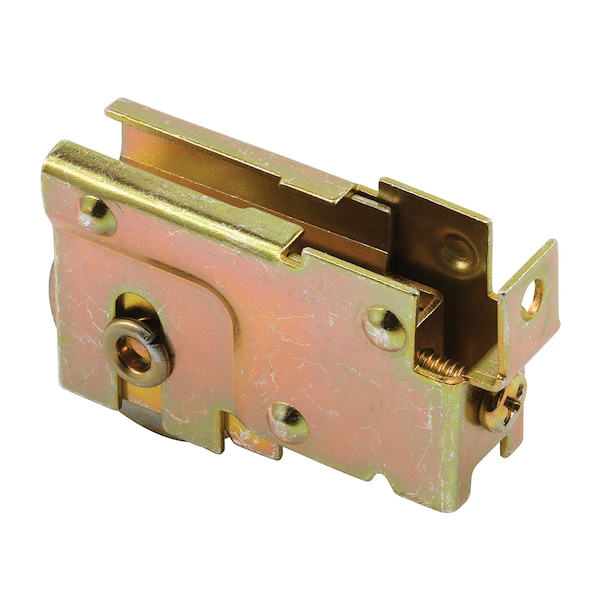

This is a F-tab patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in. used by Northrup and a variety of sliding patio door manufacturers.
  • Used by Northrup and a variety of sliding patio door manufacturers
  • When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
  • 1-1/4 in. diameter concave ball bearing roller
  • Stamped steel housing and steel rollers
  • Used on metal framed sliding patio doors
  • Easy to install
  • A Phillips head screwdriver is required for installation
  • For further dimensional information, please see the line drawing
