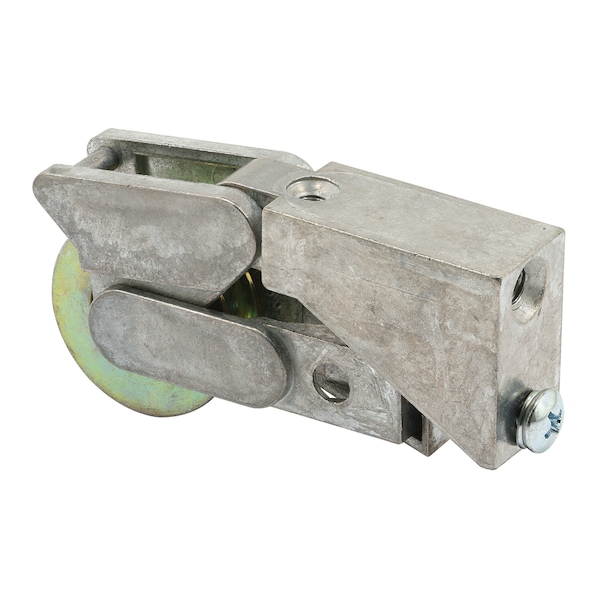

1-1/4 in. Steel Ball Bearing Sliding Roller Assembly, for Fleetwood Doors (Single Pack)

This is an diecast plain back patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. Its plain back diecast is 13/16 in. wide, 1-3/16 in. tall and 1-1/2 in. long. There is a 1/4-20 threaded mounting hole in the back end and a 10-32 threaded hole on top of the housing. Used by Fleetwood, Fullview and a variety of other patio door manufacturers.

Used by Fleetwood, Fullview and a variety of other patio door manufacturers

1/4-20 threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top of the housing

1-1/4 in. concave roller

Diecast body with a steel ball bearing roller

Adjusting screw

Mounting screw is 1-1/2 in. in from edge of housing

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
