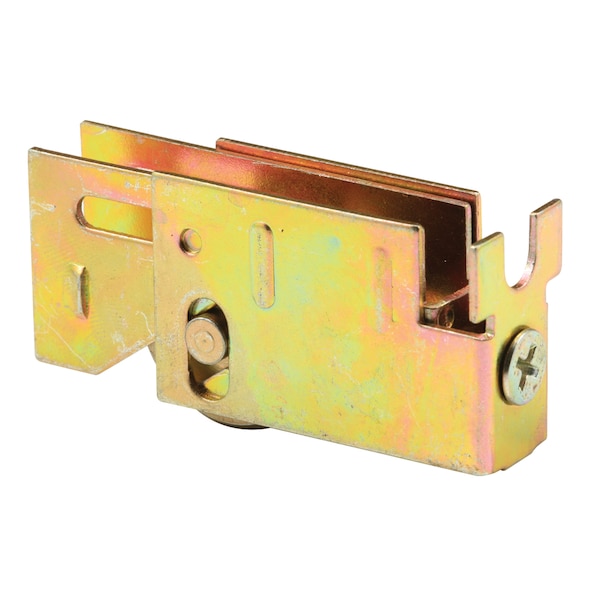

1 in. Steel Roller Assembly with Flat Steel Ball Bearing Roller (Single Pack)

This is a U-back, patio door roller assembly with a flat 1-1/2 in. ball bearing roller in a stamped steel U-back style housing. When installed the U-back housing is drawn tightly into position against the side stile as the mounting screw or bolt is tightened. The housing is 17/32 in. wide and 1-3/32 in. tall with a rear adjusting screw. Used by Capitol and a variety of other sliding patio door manufacturers.

Used by Capitol and a variety of other metal sliding patio door manufacturers

As the assembly's U-back is positioned around the corner screw, the corner screw tightens it is captured by the side stile and bottom rail as the screw draws the two sides together

Rear adjusting screw

Stamped steel housing with a ball bearing rollers

1 in. concave steel roller

Easy to install in less than 30 minutes with a few simple tools

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
