1 inch Steel Ball Bearing Sliding Door Tandem Roller Assembly, F-Tab (Single Pack)
Mfr # D 1846
Zoro # G711906315
product price:
$
12.99
/ea
Key Features
Finish
Yellow Zinc
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- D 1846
- Zoro #
- G711906315
- UPC #
- -
- Country of Origin
- China
- Finish
- Yellow Zinc
Description

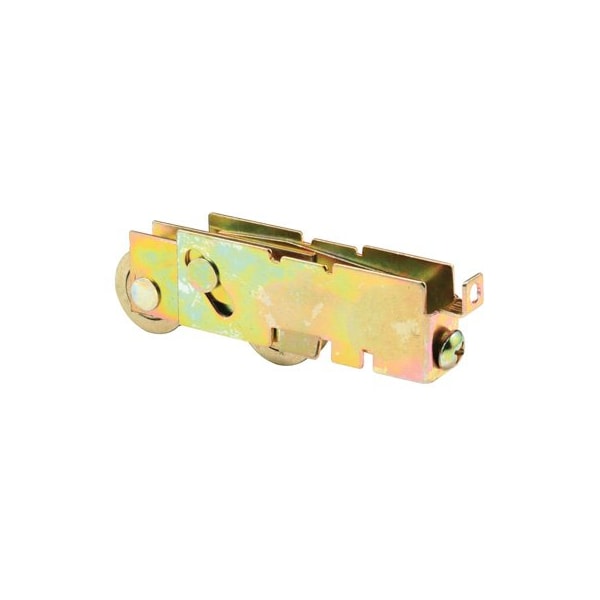

This is an F-tab tandem roller assembly. The adjustable stamped steel housing is 11/16 inch wide, 1-1/8 inch tall with a 13/16 inch flare width. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. There are two 1 inch concave steel ball bearing rollers. Used by several patio door manufacturers.
- • Used by a variety of sliding patio door manufacturers
- • When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
- • 1 inch diameter tandem concave rollers
- • Stamped steel with steel ball bearing
- • Rear adjustment screw
