2 Hangers and 1 Latch Mill, 5/16 in., Bronze (1 Set)

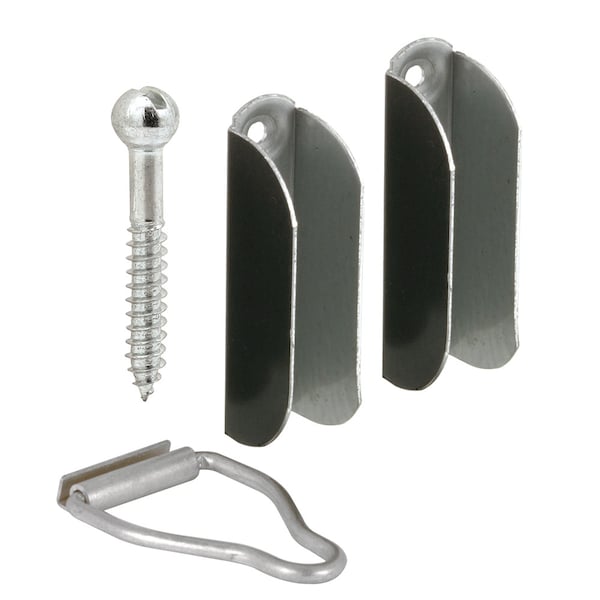

These Aluminum Screen Hanger Sets by Make-2-Fit are constructed of aluminum and steel components, and come in a corrosion-resistant, bronze plated-finish. Included with these sets are two screen hangers, one spline channel bail latch, a ball-head screw and two fasteners, per individual set. This type of screen hanging hardware is for use with 5/16 in. thick aluminum screen frames, specifically for use on horizontal and vertical (single and double hung) sliding windows. The screen frame bail latches install into the spline channels of aluminum window screens, where the vinyl spline is used to secure them into place. Spline channel bail latches like these are used to hold the bottom of aluminum screens to wood framed window sills, and they are engaged when the aluminum loop is hooked over the ball-head screws mounted on the sloped sills. Installation is easy with a few simple tools

Components are constructed of stamped aluminum, aluminum wire and steel

Aluminum latch comes in mill finish and the ball head screw comes in a zinc plated finish; both are corrosion resistant finishes

Installs into the spline channel of aluminum screens and is held in place by vinyl spline

Designed for use with aluminum screens on sliding windows

Used to hold the bottoms of screen frames locked shut

For further dimensional and specification information, please see the line drawing
