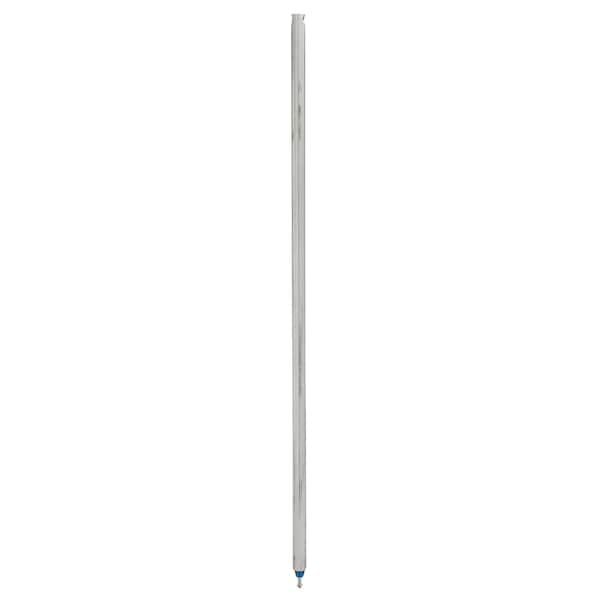

23 in. Spiral Tilt Balance, Red Tip (Single Pack)

This spiral tilt balance is constructed of a mill-finished metal tube measuring 9/16 in. in diameter. The FH series spiral balance features 2 available rod extensions; one measures 3/4 in. and the other 1-3/4 in. The colored nylon bushings of these spiral tilt balances indicate their spring and sash weight for which the balances were designed: white = standard; red = medium and blue or black = heavy. These spiral balances are used on vinyl single hung tilt windows.

Constructed of metal tubing, a nylon bushing and steel tensioning spring

Tubing comes in an unfinished, corrosion resistant, milled finish

Designed for use with vertical sliding, single hung and double hung windows that are equipped with spiral balances like these

Features 2 available rod extensions

Easy to install with only a few simple tools

For further dimensional and specification information, please see the line drawing

Prime-Line part H-3787 tilt balance tension tool can be ordered separately

For further dimensional information, please see the line drawing
