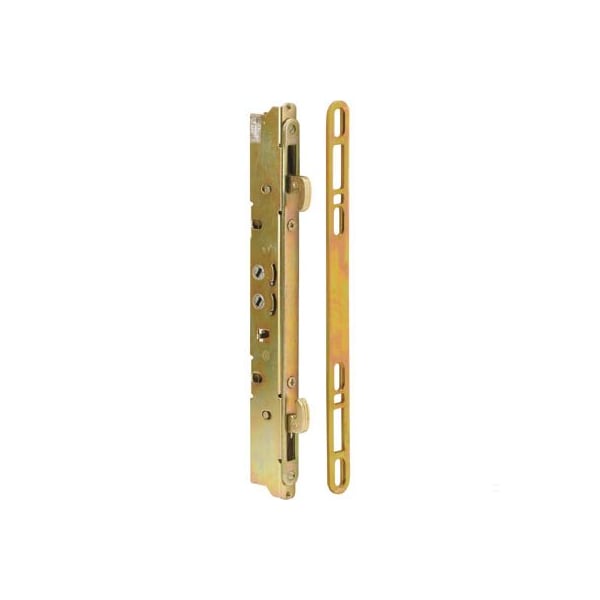

9-7/8in Steel, Multi-Point Door Lock and Keeper with 45 Degree Keyway for Sliding Patio Doors
Mfr # E 2473
Zoro # G511906270
product price:
$
69.35
/ea
Key Features
Color
Yellow Zinc
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- E 2473
- Zoro #
- G511906270
- UPC #
- -
- Country of Origin
- China
- Color
- Yellow Zinc
Description
This is a multi-point lock and keeper for vinyl patio doors that is yellow zinc plated designed for mortised installation with a round faceplate and 45 degree keyway. Mounting holes are 9-7/8 inch on center with hook to hook engagement spacing of 5-5/8 inch, with a 9/16 inch thick body. Quick and easy mortise style installation. On the face of the lock there are 2 adjusting screws to allow you to adjust each hook lock separately if different depths are needed for the hooks.
- • Used by a variety of vinyl sliding patio door manufacturers
- • Round faceplate with two adjustment screws for each hook latch
- • 45 Degree keyway mortise lock
- • Steel construction
- • Two point latching mechanism
- • All necessary mounting hardware is included for a quick and easy installation
- • A Phillips head screwdriver is required for installation
- • Please refer to the line art drawing and compare with your original item before purchasing
