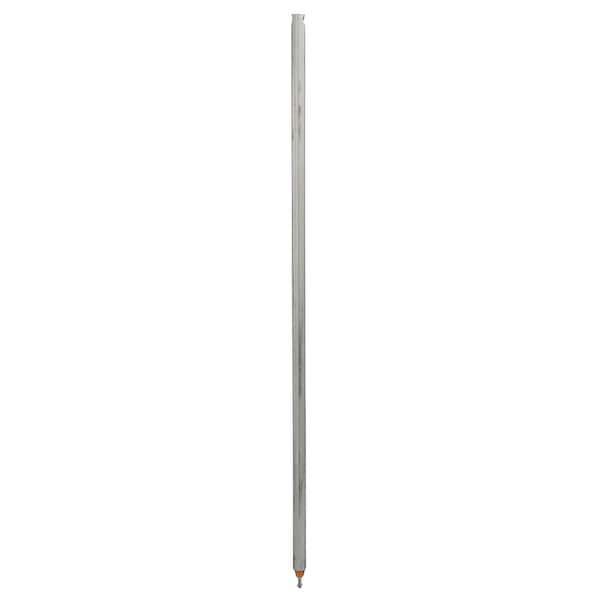

9/16 in. x 33 in. Spiral Tilt Balance, Red Tip (Single Pack)

This spiral tilt balance is constructed of a mill-finished metal tube measuring 9/16 in. in diameter. The FH series spiral balance features 2 available rod extensions; one measures 3/4 in. and the other 1-3/4 in. The colored nylon bushings of these spiral tilt balances indicate their spring and sash weight for which the balances were designed: white = standard; red = medium and blue or black = heavy. These spiral balances are used on vinyl single hung tilt windows.

Can be used on vinyl hung tilt windows

Red colored nylon bushing indicates medium spring weight

Adjustable weight range

33 in. length and 9/16 in. diameter

Maximum weight rating is 25 lbs.

Spiral balance clips are sold separately

Prime-Line part H-3787 tilt balance tension tool can be ordered separately

For further dimensional information, please see the line drawing
