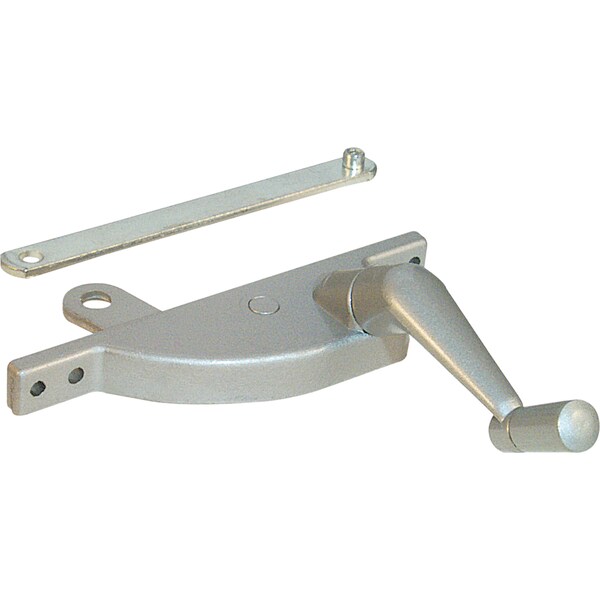

Aluminum Finish Off-Set Right-Hand Jalousie Operator (Single Pack)

This is a jalousie operator in an aluminum finish and a diecast construction with an offset crank handle. It is a right-handed design with a 4 in. link arm(center to center), and it comes with a matching aluminum finish crank handle that securely fits the 5/16 in. spindle. There are two mounting holes, 4-3/4 in. or 3-7/8 in. on center for a more versatile fit.

Right handed crank handle (viewed from inside looking out)

Mounting holes are 3-7/8 in. and 4-3/4 in. on center

Arm is 4 in. from middle of the guide button to the middle of the crank operator while closed

Heavy duty diecast zinc construction with an aluminum finish

Steel worm drive gear for durability

Matching crank handle is included

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
