Bi-Fold Door Hardware Repair Kit, Includes 2 Plastic Roller Top Guides

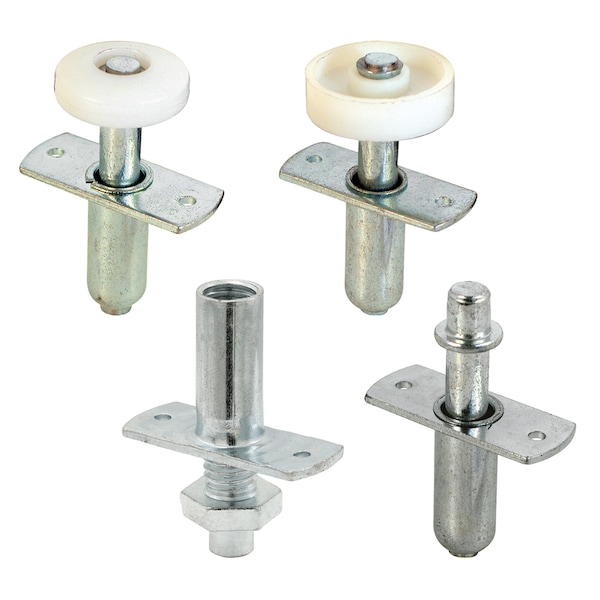

This bi-fold door pivot repair kit is constructed of plastic and steel components and they fit 3/8 in. diameter holes. The kit includes one Prime-Line part N 6611 top roller guide with a 3/4 in. plastic wheel, one Prime-Line part N 6614 top roller guide with a 7/8 in. plastic wheel, one Prime-Line part N 6612 top pivot with a 1/4 in. steel pivot, and one Prime-Line part N 6613 bottom pivot with a 1/4 in. steel pivot.
All are nail-down style with nails provided, and all except for the N-6613 bottom pivot are spring-loaded components. These repair parts are used on bi-fold doors made by many manufactures, and they can be used to replace damaged or missing bi-fold hardware to restore the doors to their optimal performance. Use on doors 1 to 1-3/8 in. thick and up to 30 lbs.

Includes one spring-loaded Prime-Line part N 6611 top roller guide with a 3/4 in. plastic wheel, and a 3/8 in. diameter nail-down style base

One spring-loaded Prime-Line part N 6614 top roller guide with a 7/8 in. plastic wheel, and a 3/8 in. diam. nail-down style base

One spring-loaded N 6612 top pivot with a 1/4 in. diameter steel pivot and a 3/8 in. diam. nail-down style base

One adjustable Prime-Line part N 6613 bottom pivot with a 1/4 in. diameter steel pivot and a 3/8 in. diameter nail-down style base

All items are spring-loaded except for bottom pivot

Installation fasteners included with this item

A soft mallet may be required for installation

For further dimensional information, please see the line drawing
