Channel Balance Accessories - Attached, Nylon and Steel, FS 101 Top and FS 153 Bottom (1 Set)

These channel balance accessory parts will be attached to the to sash balances when ordered with item number Prime-Line part FS-293BA. The components included with this item are constructed of nylon and steel, and are used in combination with double hung and single hung, vertical window channel balances. Each kit includes 1 nylon top guide (Prime-Line part FS 101), 1 nylon bottom guide (Prime-Line part FS 153), 1 steel take-out clip (Prime-Line part FS 260) and 2 metal rivets (Prime-Line part FS 261). These channel balance accessories are used by many manufacturers and service centers to replace damaged components, and for the construction of new single and double hung windows designed with vinyl liners and channel balances.

• • Ordering with this item number, the components will be attached to the sash balance prior to shipping
• • Except for the take-out clip, all parts will be installed on channel balance (ordered separately)

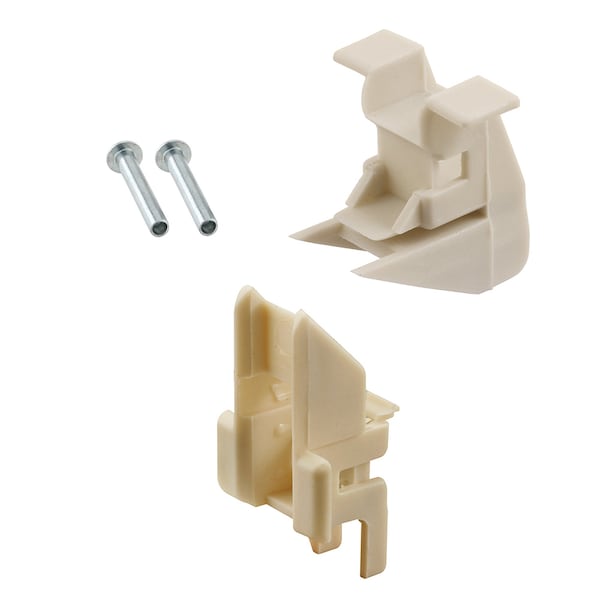

• • Each kit contains 1 top guide, 1 bottom guide, 2 rivets and 1 take-out clip
• • Guides are constructed of nylon, rivets and takeout clips are constructed of metal
• • Guides: 9/16 inch x 1-1/4 inch x 15/16 inch top and 15/16 inch x 1-3/32 inch bottom
• • Please refer to the line art drawing and compare with your original item before purchasing
