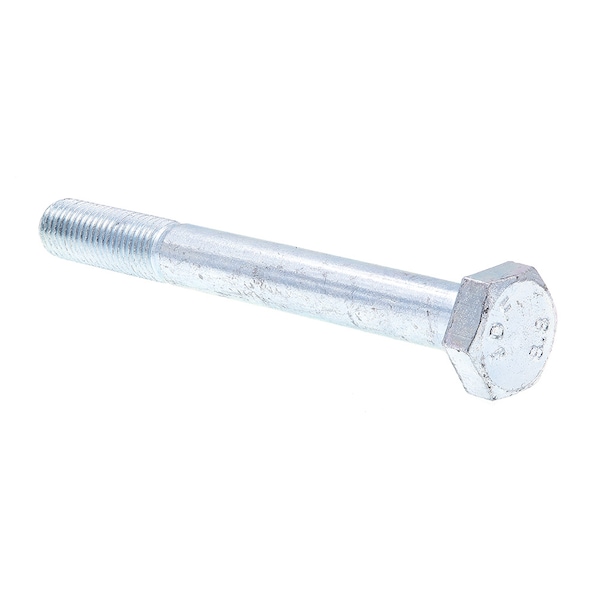

Hex Head Cap Screw, Class 8.8 Metric M10-1.25 X 90MM Zinc Plated Steel 2PK
Mfr # 9111508
Zoro # G700933667
product price:Â
$
10.29
/pk 2, $5.15/ea
Key Features
External Hex Drive
Class 8.8 Material Grade/Class
System of Measurement
Metric
Thread Size
M10-1.25
Head Width
17 mm
Material
Steel
Finish
Zinc Plated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9111508
- Zoro #
- G700933667
- UPC #
- 49793181091
- Country of Origin
- China
Dimensions
- Thread Size
- M10-1.25
- Fastener Length
- 90 mm
- Head Width
- 17 mm
Details
- System of Measurement
- Metric
- Drive
- External Hex
- Material Grade/Class
- Class 8.8
- Material
- Steel
- Finish
- Zinc Plated
- Thread Style
- Partially Threaded
- Thread Direction
- Right Hand
- Standards
- DIN 960, ISO 898-1 CLASS 8.8
- Item
- Hex Head Cap Screw
- Number of Pieces
- 2
- Thread Type
- Fine
Description
Hex head cap screws are similar to hex bolts, however they feature a washer surface under the head and have a chamfered end (as opposed to the flat end seen on hex bolts). They are often referred to as finished hex bolts by most people. The 6 sided head makes them easy to install using a standard wrench, socket set or nut driver. The first dimension will be the hex head size and the second dimension will be the length of the bolt. Each package contains 2 hex head cap screws (hex bolts).Size: M10-1.25 X 90MM Hex bolt with a chamfered end and washer face under the head Designed for use with a nut or a threaded hole of the same diameter and thread size Often called finished hex bolt Nuts not included Thread Type: Fine, Thread Class: 6H, Point Style: Blunt Specification(s) Met: DIN 960, ISO 898-1 CLASS 8.8
