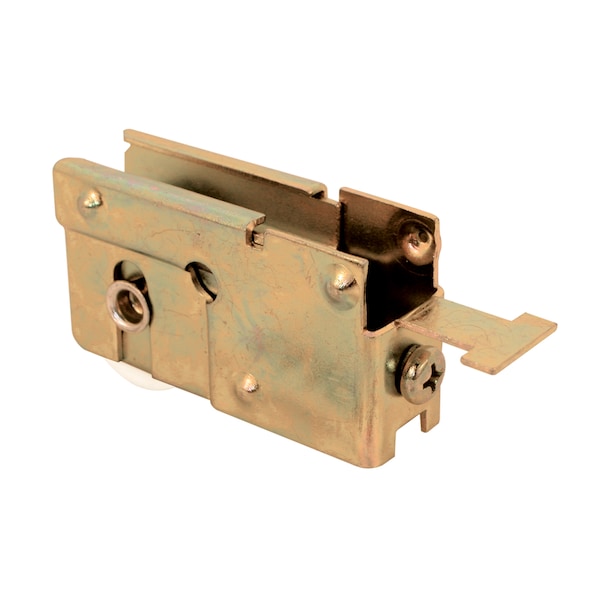

International Sliding Glass Door Roller Assembly, 1-1/2 in. Nylon Ball (Single Pack)

This is a K-tab patio door roller assembly with a 1-1/2 in. concave nylon ball bearing roller. The T-shaped tab (K-tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required. The housing is 3/4 in. wide and 1-1/4 in. tall with a 7/8 in. dimple width. The dimples secure it within the door's bottom frame. Used by International and a variety of other sliding door manufacturers.

Used by International and a variety of other patio door manufacturers

The T-shaped tab (K-Tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door.

1-1/2 in. diameter concave ball bearing roller

Stamped steel body and roller

Rear adjusting screw

Easy to install

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
