Shop PRIME-LINE

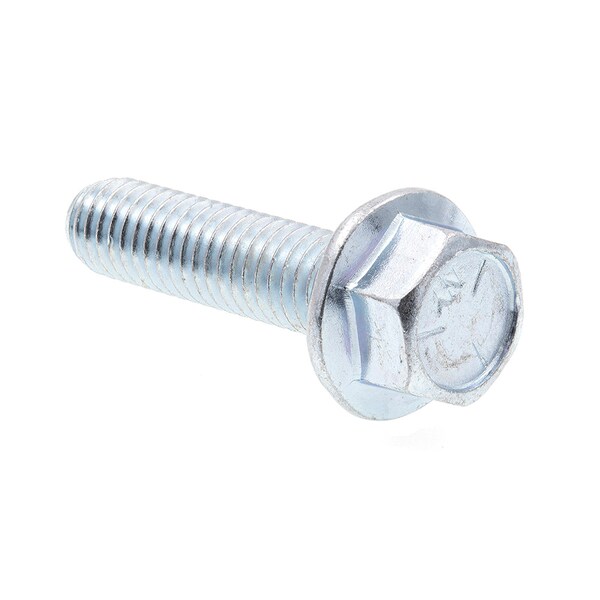

Serrated Flange Bolts 3/8in-16 X 1-1/2in Zinc Plated Case Hard Steel 25PK

  • Mfr # 9091197

  • Zoro # G800934663

product price:
$
20.99
/pk of 25, $0.84/ea

Key Features

Hex Drive
System of Measurement
Inch
Flange Type
Serrated
Head Width
9/16 in
Material
Case Hardened Steel
Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9091197
Zoro #
G800934663
UPC #
49793204479
Country of Origin
China

Dimensions

Thread Size
3/8"-16
Fastener Length
1-1/2 in
Head Width
9/16 in

Details

System of Measurement
Inch
Flange Type
Serrated
Drive
Hex
Material
Case Hardened Steel
Finish
Zinc Plated
Thread Style
Fully Threaded
Thread Direction
Right Hand
Standards
ASME B18.2.1, ASME B18.6.3, & ASME B1.1
Item
Flange Bolt
Head Style
Flange Hex

Description

Flange bolts feature a built in washer under the bolt head that helps to distribute the clamping load over a larger area. This "one-piece" design eliminates the need of a separate washer under the bolt head and is preferable for some applications as it can be more efficient and easier to use. A washer is still needed on the nut side unless using a flange nut. The serrations under the flange bite into the surface and help to resist loosening due to vibration.
  • Size: 3/8 inch-16 X 1-1/2 inch
  • Hex bolt with a serrated circular flange under the head
  • Flange eliminates need for separate washer
  • Serrations bite into surface and can help to prevent loosening
  • Designed for use with a nut (not included) or a threaded hole of the same diameter and thread size
  • Thread Type: Coarse, Thread Class: UNC-2A, Point Style: Blunt
  • Specification(s) Met: ASME B18.2.1, ASME B18.6.3, & ASME B1.1
