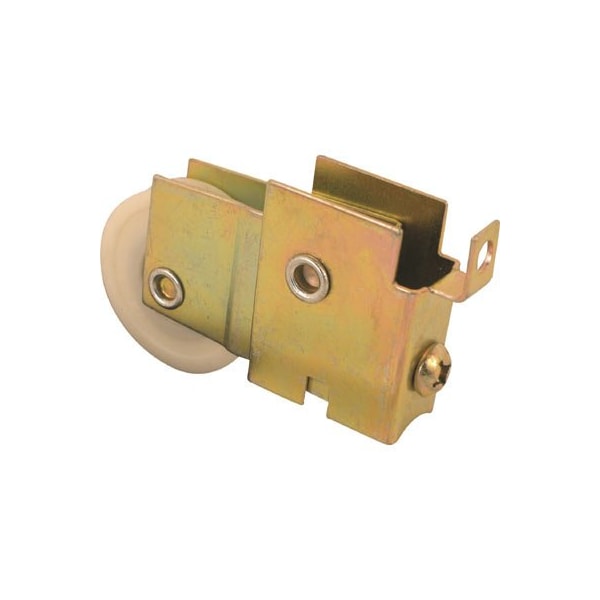

Single 1-1/2 in. Nylon Ball Bearing Roller, F-Tab Style, Adjustable (Single Pack)

This is a F-tab patio door roller assembly with a 1-1/2 inch concave or grooved nylon ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 inch wide and 1-5/8 inch tall with a rear adjusting screw. Used by Doormaster, Starlite and a variety of other patio door manufacturers.

• • 1-1/2 inch Concave (grooved) Nylon Roller
• • Ball Bearing
• • F-Tab Housing with Rear Adjust
• • When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
• • Housing is 11/16 inch wide, 1-5/8 inch tall and 1-1/4 inch long (not including the inner roller housing)
• • Rear adjustment screw
• • Used on metal framed patio doors
• • Please refer to the line art drawing and compare with your original item before purchasing
