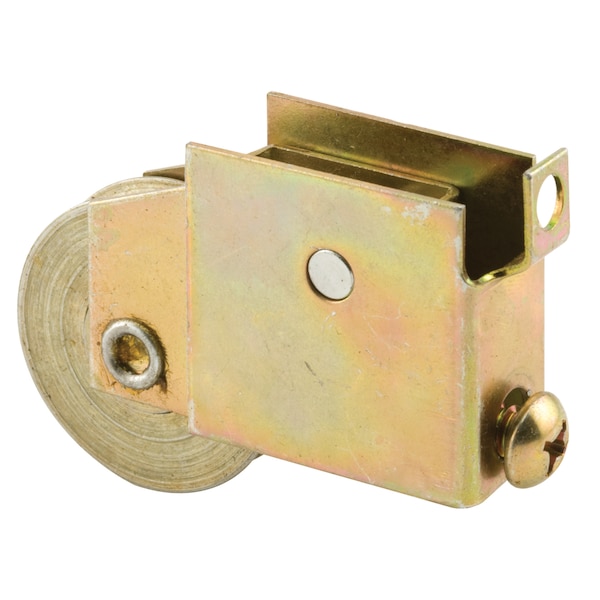

Single 1-1/2 in. Steel Ball Bearing Roller, F-Tab Style, Adjustable (Single Pack)

This is a F-tab patio door roller assembly with a 1-1/2 in. concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 3/4 in. wide and 1-1/2 in. tall with a rear adjusting screw. Used by Holleyview, Fullview and a variety of other patio door manufacturers.

1-1/2 in. Concave (grooved) Steel Roller

Ball Bearing

F-Tab Housing with Rear Adjust

When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together.

Housing is 3/4 in. wide, 1-1/2 in. tall and 1-1/2 in. long (not including the inner roller housing)

Rear adjustment screw

Used on metal framed patio doors

For further dimensional information, please see the line drawing
