Single 1-1/4 in. Nylon Ball Bearing Roller, C-Tab Style, Adjustable (Discontinued)

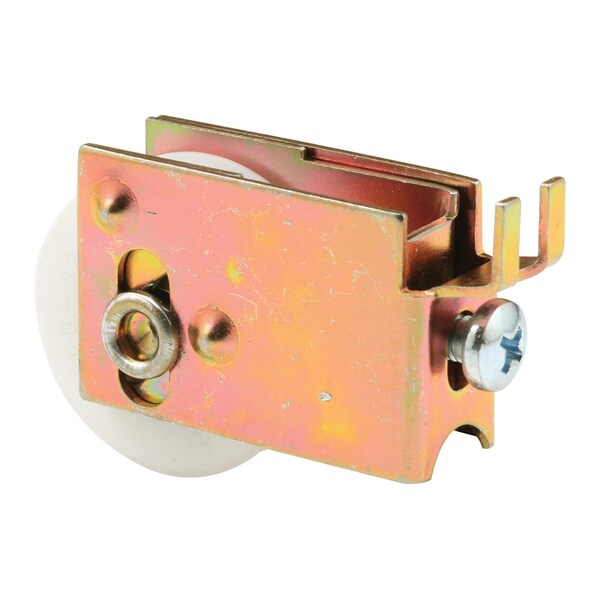

This is a C-tab patio door roller assembly with a 1-1/4 in. concave or grooved nylon ball bearing roller. The C-tab fits around the corner screw and captured by the side stile and bottom rail as they are drawn together. The housing is 9/16 in. wide with a dimple width of 3/4 in., 1-1/16 in. tall and 1-9/16 in. long. Used on Ador Hilite patio doors.

1-1/4 in. Concave (grooved) Nylon Roller

Ball Bearing

C-Tab Housing with Rear Adjust

As the C tab is positioned around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together.

Housing is 9/16 in. wide, 1-1/16 in. tall and 1-5/8 in. long with an adjustment screw on the back end

Used on metal framed patio doors

Used on Ador Hilite patio doors

For further dimensional information, please see the line drawing
