Single 1-1/4 in. Steel Ball Bearing Roller, F-Tab Style, Adjustable (Single Pack)
Mfr # D 1856
Zoro # G211906174
product price:
$
10.65
/ea
Key Features
Finish
Yellow Zinc
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D 1856
- Zoro #
- G211906174
- UPC #
- -
- Country of Origin
- United States
Details
- Finish
- Yellow Zinc
Description

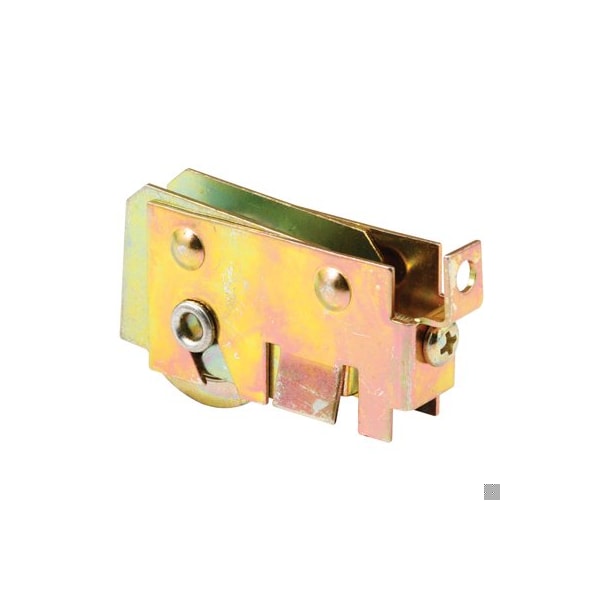

This is a F-tab patio door roller assembly with a 1-1/4 inch concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 5/8 inch wide with a 3/4 inch flare, 1-3/16 inch tall with a rear adjusting screw. Used by Rylock and a variety of other patio door manufacturers.
- • 1-1/4 inch concave (grooved) steel roller
- • Ball bearing
- • F-tab housing with rear adjustment
- • When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
- • Housing is 5/8 inch wide with a 3/4 inch flare, 1-3/16 inch tall and 2-1/8 inch long
Restrictions
This item has been restricted from sale in the following states:
AK
