Single 1-1/4 in. Steel Ball Bearing Roller, S-Tab Style, Adjustable (Single Pack)

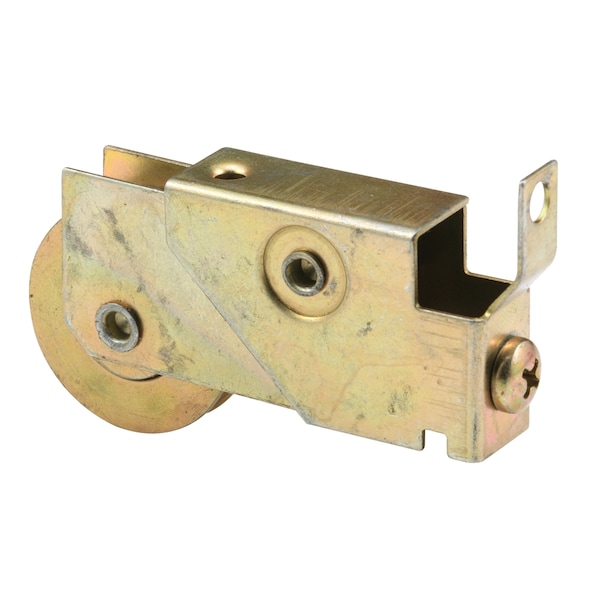

This is an S-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. When the corner screw passes through the S-tab it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 17/32 in. wide and 1-5/32 in. tall. It is a common shape that a variety of patio door designers have incorporated into their patio door.

1-1/4 in. Concave (grooved) Steel Roller

Ball Bearing

S-Tab Housing with Rear Adjust

The S tab has a non-threaded mounting hole in it. There is also an optional use 10-32 threaded hole on the top of the housing.

Housing is 17/32 in. wide, 1-5/32 in. tall and 1-1/4 in. long (not including the inner roller housing)

Used on metal or vinyl framed patio doors

Used by a variety of patio door manufacturers

For further dimensional information, please see the line drawing
