Single 1-1/4 in. Steel Roller Assembly, Ball Bearing, Unique Housing (Single Pack)
Mfr # D 1560
Zoro # G111906069
product price:
$
12.59
/ea
Key Features
Finish
Zinc Plated
Bearings
Ball Bearing
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D 1560
- Zoro #
- G111906069
- UPC #
- -
- Country of Origin
- China
Details
- Item
- Roller Assembly
- Finish
- Zinc Plated
- Bearings
- Ball Bearing
Description

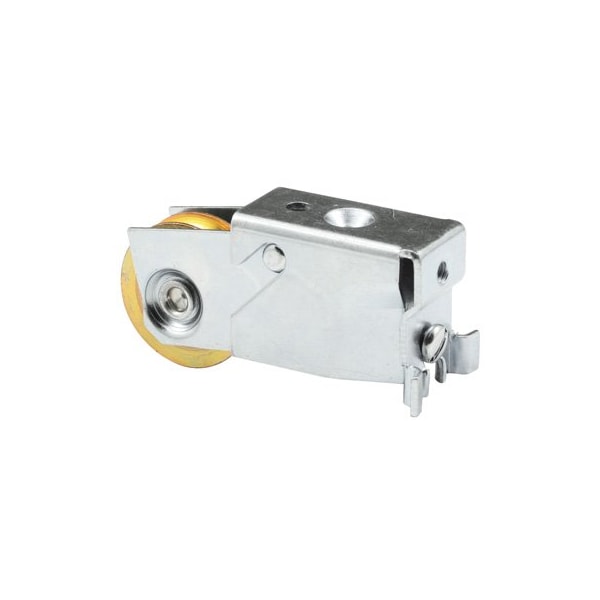

This is a unique back patio door roller assembly with a 1-1/4 inch concave steel ball bearing roller. It's has a tab design on the bottom back edge that snaps the roller assembly into place on the door stile edge before being held in place by a mounting screw in the 1/4-20 threaded mounting hole in the back end of the housing. It is 1-3/16 inch wide and 1-5/16 inch tall with an optional use #10-32 threaded hole in the top of the housing. Used by Smith and Kelly and a variety of other manufacturers.
- • 1-1/4 inch concave (grooved) steel rollers
- • Ball bearing
- • Unique housing installation tab design with rear adjust
- • 1/4-20 Threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top of the housing
- • Housing is 1-3/16 inch wide, 1-5/16 inch tall and 1-11/16 inch long (not including the inner roller housing)
Restrictions
This item has been restricted from sale in the following states:
AK
