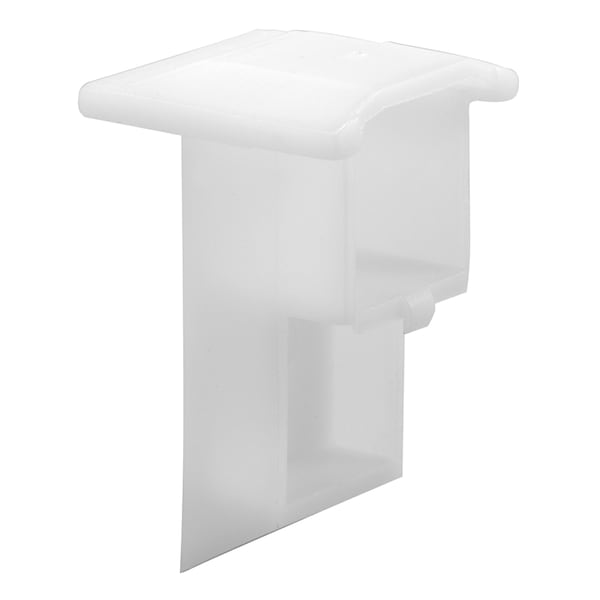

Single or Double Hung Window Sash Cam, Top Mount (1 Pair)

This plastic sash cam fits onto the upper top sides of the window (vent) that is sliding up or down. The sash cam and window then rest on the top guide of the sash balance. It has dimensions of the top being 1 in. wide by 5/8 in. deep and 1-5/16 in. tall. Width of this top guide needs to fit correctly in the window's track frame in order for it to slide up or down properly, and the depth allows the window to correctly rest on the top guide of the sash balance.

Sash cams are used in hung windows that use channel balances

They mount to the top side edges of the moving vent, 2 per window

They actually engage and push the channel balance top guide, moving the balance with the window

They can become brittle with age and UV exposure and break, rendering the window channel balance disabled

They are easy to replace. Follow vent removal instructions from your manufacture or visit www.primeline.net for removal instructions

For further dimensional information, please see the line drawing
