Sliding Door Roller Assembly, 1-1/8 in. Steel Ball Bearing (Single Pack)

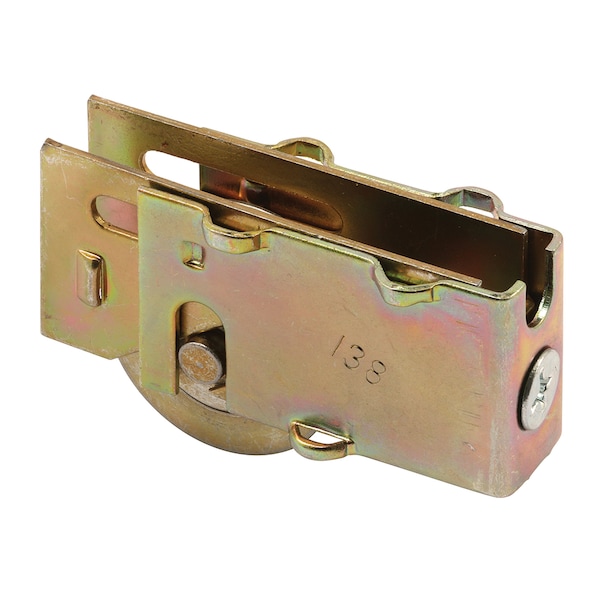

This is a U-tab patio door roller assembly with a 1-1/8 in. concave steel ball bearing roller in a stamped steel "U" back style housing. When installed the U-back housing is drawn tightly into position against the side stile as the mounting screw or bolt is tightened. The housing is 9/16 in. wide with a 3/4 in. flare and 1-1/16 in. tall with a rear adjusting screw. Used by a variety of patio door manufacturers.

Used by a variety of sliding patio door manufacturers

When installed the U-back housing is drawn tightly into position against the side stile as the mounting screw or bolt is tightened

1-1/8 in. concave roller

Stamped steel housing and ball bearing roller

Rear adjusting screw

Easy to install

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
