Prime-Line

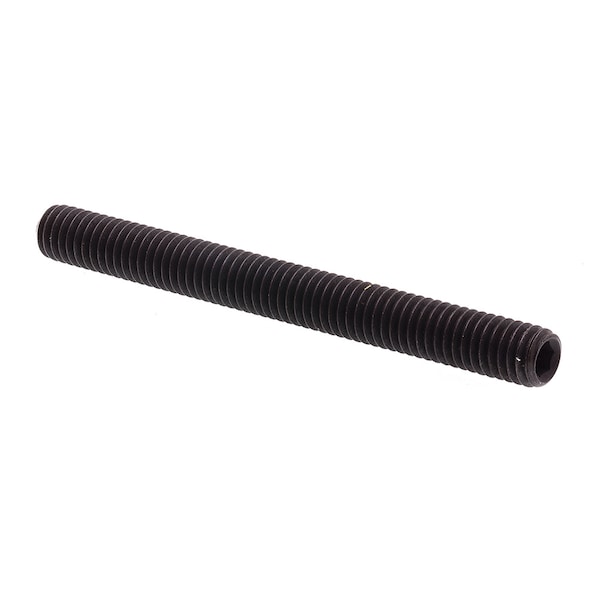

Socket Set Screw, Metric M6-1.0 X 60MM Black Oxide Coated Steel 5PK

Prime-Line Socket Set Screw,  Metric M6-1.0 X 60MM Black Oxide Coated Steel 5PK 9186425
Hover or click to zoom Tap to zoom
Key Features
  • System of Measurement: METRIC
  • Point Type: Cup Point
  • Thread Size: M6-1.0
  • Material: ALLOY STEEL
  • Finish: BLACK OXIDE
  • Fastener Thread Type: Coarse
  • Size: M6-1.0 X 60MM
  • Drive Type: HEX (ALLEN)
See full product details
$13.99
Pk of 5, $2.80/ea

Sign in for Free Shipping Over $50
Sign in for Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns
30-Day Returns
125 U.S.-Based Customer Service Agents
125 U.S.-Based Customer Service Agents

Prime-Line #9186425 Specifications

  • System of Measurement: METRIC
  • Point Type: Cup Point
  • Thread Size: M6-1.0
  • Material: ALLOY STEEL
  • Finish: BLACK OXIDE
  • Fastener Thread Type: Coarse
  • Size: M6-1.0 X 60MM
  • Drive Type: HEX (ALLEN)
  • Class: 6G
  • Meets/Exceeds: ISO 4029, ISO 898-5, CLASS 45H
  • Number of Pieces: 5
  • Length: 60MM
  • Dia./Thread Size: M6
  • Fastener Thread Direction: RIGHT HAND
  • Country of Origin (subject to change): Philippines

Description

Socket set cap screws have cup points that produce a thin edge that digs into hard surfaces for a secure hold. This fastener is headless and contains an internal hex drive. Use an Allen wrench (hex key) to secure with required torque as needed. Although often used in machinery, they can be found around the home as well to secure window crank handles to window operators or to hold interior door knobs to spindles. Length is measured from the top of the fastener to the base of the cup point.
  • Size: M6-1.0 X 60MM
  • Headless screw that sits flush or below the surface once installed
  • Internal socket drive requires Allen wrench (hex key) to install
  • Installs into an internally threaded hole to hold an object into place
  • Often used in machinery to secure gears to shafts
  • Thread Type: Coarse, Thread Class: 6G, Point Style: Cup Point
  • Specification(s) Met: ISO 4029, ISO 898-5, CLASS 45H
