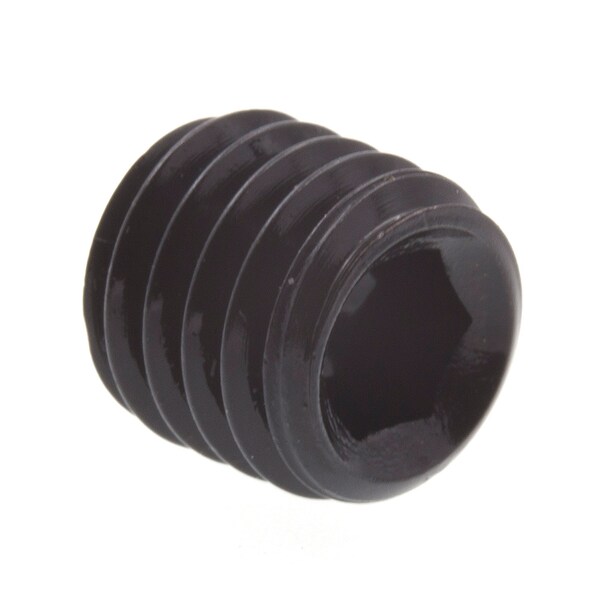

Socket Set Screw, Metric M8-1.25 X 8MM Black Oxide Coated Steel 10PK

Socket set cap screws have cup points that produce a thin edge that digs into hard surfaces for a secure hold. This fastener is headless and contains an internal hex drive. Use an Allen wrench (hex key) to secure with required torque as needed. Although often used in machinery, they can be found around the home as well to secure window crank handles to window operators or to hold interior door knobs to spindles. Length is measured from the top of the fastener to the base of the cup point.

Size: M8-1.25 X 8MM

Headless screw that sits flush or below the surface once installed

Internal socket drive requires Allen wrench (hex key) to install

Installs into an internally threaded hole to hold an object into place

Often used in machinery to secure gears to shafts

Thread Type: Coarse, Thread Class: 6G, Point Style: Cup Point

Specification(s) Met: ISO 4029, ISO 898-5, CLASS 45H
