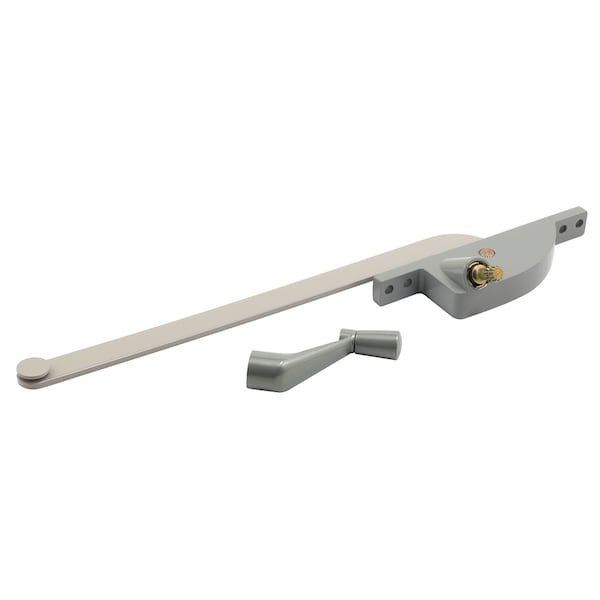

Steel Casement Operator, 8 in. Arm, Teardrop Housing, Aluminum, Right (Single Pack)

This casement operator is constructed of a diecast body, a hardened steel arm (with a steel guide button at 9/16 in. in diameter), and a case-hardened worm gear mechanism that comes in a corrosion resistant plating. It features a teardrop-shaped housing and an operator crank handle, and comes finished in an aluminum painted color. This Prime-Line casement operator is right-handed, determined when viewing the window from the inside looking out. It is a face-mounted design that installs on older, crank-out casement, steel window frames with 3-7/8 in. and 4-3/4 in. mounting hole centers. This high-end quality operator exhibits minimal gear lash, with positive and smooth operation. For the opposite handing of this operator, see Prime-Line part H-4281. Installation fasteners and a set screw (for affixing the crank handle onto the operator spindle) are included with each operator.

Used on right-handed, steel-framed, crank-out casement windows

9/16 in. outside diameter guide button, 5/16 in. diameter spindle, 3-7/8 in. and 4-3/4 in. mounting hole centers

Aluminum color, painted finish

Hardened steel arm with diecast housing and crank; includes installation fasteners

The handing for this Prime-Line casement operator is determined by viewing the operator from the INSIDE LOOKING OUT

For further dimensional information, please see the line drawing
