Steel Patio Sliding Door Roller Kit, 1-1/2 in. Concave Roller, White Plastic (1 Pair)

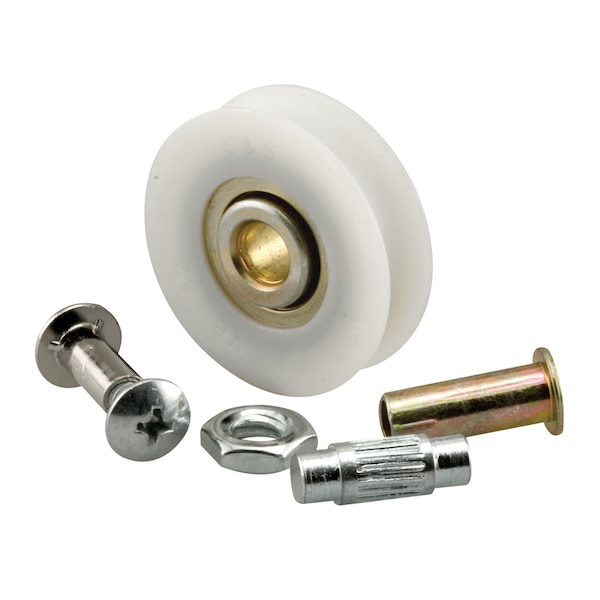

This is a combination of a 1-1/2 in. diameter nylon concave or grooved ball bearing roller that is 5/16 in. thick with a 1/4 in. axle hole and a combination of 5 different axle choices. Depending on the application, you can choose to rivet the roller into place or use a roll pin, drive pin, binder post and screw or bolt and nut. Regardless of how you need to install the new roller into your existing roller housing, in most cases, one of the five choices will work.

Used to replace rollers that are 1-1/2 in. diameter

1-1/2 in. concave roller

Can be mounted using a rivet, a roll pin, drive pin, binder post and screw or bolt and nut to install the roller in place

Steel ball bearing wheel

Contains 2 steel ball bearing wheels, 2 axle pins, 2 roll pins, 2 carriage bolts with nuts, 2 rivet axels and 2 binder posts with #8-32 x 1/2 in. screws

Easy to install in less than 30 minutes with a few simple tools

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
