9 in. Aluminum Diecast, Casement Operator, Right Hand, Teardrop Type (Single Pack)
Mfr # H 3508
Zoro # G0570689
product price: $23.19
/ea
$23.19
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Finish Aluminum
- Material Steel
- Length (In.) 9 in.
- Height (In.) 13 1/4 in
- Base Size (In.) 4-3/4
Product Information
- Brand Primeline Tools
- MFR # H 3508
- Zoro # G0570689
- UPC # 49793035080
- Country of Origin China
- Category Window Operators & Covers
Dimensions
| Length (In.) | 9 in. |
| Height (In.) | 13 1/4 in |
| Base Size (In.) | 4-3/4 |
| Width (In.) | 3-7/8 |
Details
Description

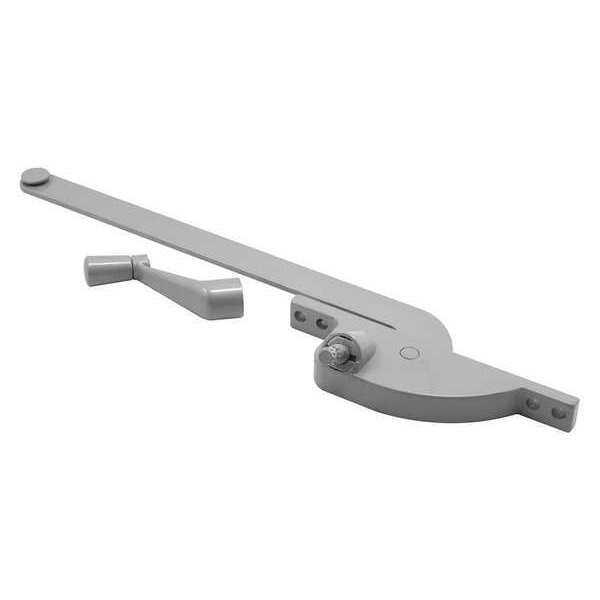

This casement window operator is a right-handed aluminum square body type. It has a 9 inch steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 inch crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 inch on center.
- •Right handed square body crank handle (viewed from inside looking out)
- •Mounting holes are 3-7/8 inch and 4-3/4 inch on center
- •Arm is 9 inch from middle of the guide button to the middle of the crank operator while closed
- •Heavy duty diecast zinc construction with an aluminum finish
- •Steel worm drive gear for durability
