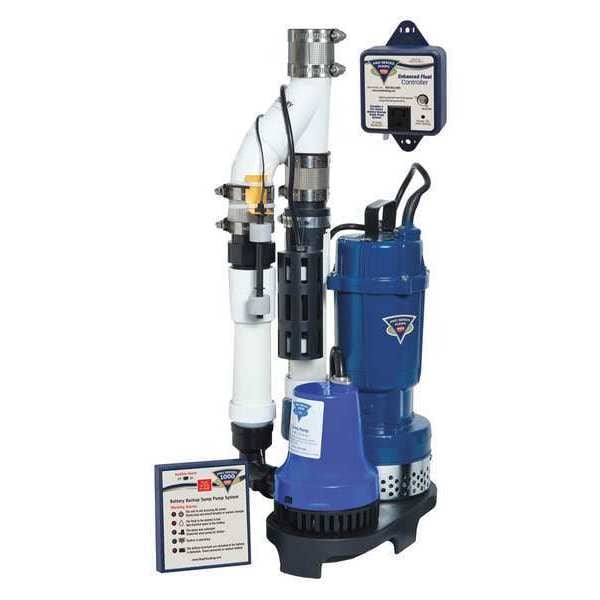

Pro Series Pumps Sump/Battery Backup System 6.5Amp Backup PS-C11 - main

Sump/Battery Backup System 6.5Amp Backup

  • Mfr # PS-C11

  • Zoro # G3080165

product price: $726.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 (Primary); 1/4 (Secondary)
Body Material
Cast Aluminum (Primary); ABS (Secondary), Cast Iron
Switch Actuation
Dual Micro Reed
Flow Rate @ 10 Ft. of Head
46.2 gpm (Primary); 16.7 gpm (Secondary)
Min. Sump Pit Dia.
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS-C11
Zoro #
G3080165
UPC #
717301122002
Country of Origin
Multiple

Dimensions

Min. Sump Pit Dia.
12 in
Cord Length
10 ft
Width
8-7/8"
Max. Dia. Solids
1/4"
Max. Diameter Solids
1/4 in
Height
22-1/4"
Length
11"
Cord Length - Pumps
10 ft. (Primary), 7 ft. (Secondary)
Max. Dia. Solids (In.) - Back-Up
3/16
Discharge Dia.
1 1/2 in
Overall Height
22 1/4 in
Primary Pump Overall Height
22 1/4 in
Secondary Pump Maximum Solids Diameter
3/16 in
Primary Pump Maximum Solids Diameter
1/4 in
Width at Widest Point
8 7/8 in
Primary Pump Width at Widest Point
8 7/8 in
Secondary Pump Solids Diameter - Maximum
3/16 in
Sump Pit Diameter - Minimum
12 in
Discharge Diameter
1 1/2 in
Primary Pump Solids Diameter - Maximum
1/4 in

Details

HP
1/3 (Primary); 1/4 (Secondary)
Body Material
Cast Aluminum (Primary); ABS (Secondary), Cast Iron
Switch Actuation
Dual Micro Reed
Flow Rate @ 10 Ft. of Head
46.2 gpm (Primary); 16.7 gpm (Secondary)
Max. Head
29.0 ft (Primary); 15.0 ft (Secondary)
Off Point
10 sec After the Float Drops Which Normally Empties the Pit (Primary); 30 sec (Secondary)
Impeller Material - Pumps
Cast Iron (Primary), ABS (Secondary)
Impeller Material
Cast Iron (Primary); ABS (Secondary)
Shaft Seal
Dual Carbon Ceramic (Primary); Rulon (Secondary)
Motor Type
PSC (Primary); Brush type DC (Secondary)
Amps
3.8 A
Max. Flow (GPH)
4100
12VDC Battery Charger
0.4 Amps
GPH of Water @ 15 Ft. of Head
2580 (Primary) 100 (Secondary)
For Use With
Standby Battery 4NE48 or 4NE47 and Acid or AGM Maintenance Free Battery
Shaft Seal Material - Pumps
Carbon, Ceramic
On Point (In.)
8 3/4 (Primary); 11 1/4 (Secondary)
Off Point (In.)
10 Seconds After the Float Drops Which Normally Empties the Pit (Primary); 30 Seconds (Secondary)
Max. Flow (GPH) - Back-Up
2000
Housing Material
Cast Iron, Cast Aluminum (Primary); ABS (Secondary)
Switch Type - Pumps
Caged Automatic Dual Float
Voltage - Back-Up
12VDC
Item - Sump Pumps
Sump/Battery Back-Up System
GPH of Water @ 5 Ft. of Head
3000 (Primary), 1420 (Secondary)
Base Material
Steel (Primary); ABS (Secondary)
GPH of Water @ 0 Ft. of Head
4100 (Primary), 2000 (Secondary)
Pump Body Material
Cast Iron, Cast Aluminum (Primary), ABS (Secondary)
Max. Head (Ft.) - Back-Up
15
Agency Compliance
UL
Switch Type
Caged Automatic Dual Float
Max. Liquid Temp.
104 Degrees F
Voltage
115
GPH of Water @ 10 Ft. of Head
2770 (Primary); 1000 (Secondary)
Max. Flow (GPH) - Pumps
4100
Discharge NPT
1-1/2" F
Includes
2 Pumps, Battery Box, Battery Fill Bottle, Monitoring Controller
Amps - Pumps
3.80
On Point
8 3/4 in
Alarm Included
Yes
Voltage - Pumps
120VAC
Max. Head - Pumps
29 ft.
Duty
Continuous (Primary); Intermittent (Secondary)
Amps - Back-Up
6.50
GPM of Water @ 5 Ft. of Head
50 (Primary), 23.6 (Secondary)
Item
Sump/Battery Back-Up System
Flow Rate @ 5 Ft. of Head
50.0 gpm (Primary); 23.6 gpm (Secondary)
Primary Pump Amps
3.8
Flow Rate @ 15 Ft. of Head
43.0 gpm (Primary); 1.7 gpm (Secondary)
Secondary Pump HP
1/4 hp
Flow Rate @ 20 Ft. of Head
29.0 gpm (Primary)
Primary Pump Body Material
Cast Aluminum, Cast Iron
Primary Pump Flow Rate @ 10 Ft. of Head
46.2 gpm
Secondary Pump Maximum Head
15 ft
Secondary Pump Body Material
ABS
Primary Pump Impeller Material
Cast Iron
Switch Electrical Connection
Piggyback
Alarm Application
Indoor
Secondary Pump Shaft Seal Material
Rulon
Discharge Standard
NPT
Primary Pump Rated Voltage
115V AC
Secondary Pump Flow Rate @ 15 Ft. of Head
1.7 gpm
Primary Pump HP
1/3 hp
Primary Pump Flow Rate @ 5 Ft. of Head
50.0 gpm
Secondary Pump Amps
6.5
Duty Cycle
Continuous; Intermittent
Primary Pump Flow Rate @ 20 Ft. of Head
29.0 gpm
Secondary Pump Impeller Material
ABS
Primary Pump Flow Rate @ 15 Ft. of Head
43.0 gpm
Primary Pump Shaft Seal Material
Dual Carbon Ceramic
Discharge
1-1/2 in FNPT
Secondary Pump Rated Voltage
12V DC
Discharge Gender
Female
Primary Pump Duty Cycle
Continuous
Secondary Pump Flow Rate @ 5 Ft. of Head
23.6 gpm
Primary Pump Maximum Head
29 ft
Secondary Pump Duty Cycle
Intermittent
Secondary Pump Flow Rate @ 10 Ft. of Head
16.7 gpm
Standards
UL
Feet of Head - Maximum
29.0 ft (Primary); 15.0 ft (Secondary)
For Media Type
Clear Water
Alert Output
Audio, Visual
Secondary Pump Switch Actuation
Dual Micro-Reed Float
Connectivity
Wi-Fi
Primary Pump Current
3.8 A
Liquid Temperature - Maximum
104 Degrees F
Secondary Pump Flow Rate @ 10 ft of Head
16.7 gpm
Series
Pro Series Pumps
Power Source
Corded Electric
Alerts Indicated
High Water, Power Outage, Pump Fail to Run
Secondary Pump Horsepower
1/4 hp
Primary Pump Flow Rate @ 10 ft of Head
46.2 gpm
Secondary Pump Current
6.5 A
Includes Alarm
Alarm Included
Primary Pump Switch Electrical Connection
Piggyback
Primary Pump Switch Actuation
Dual Micro-Reed Float
Primary Pump Horsepower
1/3 hp

Description

Sump/Battery Back-Up System
