  9. Vacuum Pump, 4cfm, 1/3hp

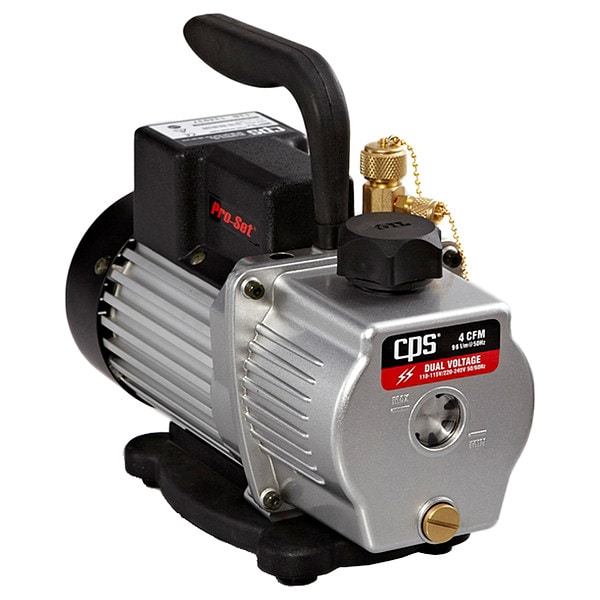

Pro-Set Vacuum Pump, 4cfm, 1/3hp VP4S - main

Vacuum Pump, 4cfm, 1/3hp

  • Mfr # VP4S

  • Zoro # G709232051

product price: $227.99
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.

Key Features

HP
1/3 hp
Inlet Port Size
1/2 in ACME, 1/4 in SAE, 3/8 in SAE
Voltage
110 to 120V AC; 220V AC
Weight
15 lb
Displacement
4 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VP4S
Zoro #
G709232051
UPC #
750377741470
Country of Origin
China

Dimensions

Inlet Port Size
1/2 in ACME, 1/4 in SAE, 3/8 in SAE
Overall Length
12.2 in
Overall Width
5 in
Overall Height
9.6 in
Width
5 in
Height
9 19/32 in
Inlet 1 Port Connection Size
1/4 in
Inlet 3 Port Connection Size
1/2 in
Inlet 2 Port Connection Size
3/8 in

Details

Item
Vacuum Pump
HP
1/3 hp
Voltage
110 to 120V AC; 220V AC
Weight
15 lb
Displacement
4 cfm
End Vacuum
50 micron
Hz
50/60 Hz
Special Features
Extreme Shock Resistance
Oil Capacity
16 oz
Body Material
Aluminum
Motor Type
Air-Cooled
Features
A Proprietary Spring-Activated Polymer-Based Exhaust Valve Enables a 99.999% Seal on the Discharge Port of the Vacuum Pump Mechanism, Advanced Air Cooled Motor Design for Operation in High Ambient Temperatures, Easy Maintenance with Large Oil Sight Glass and Fill Port with Easily Accessible Oil Drain Port, Gas Ballast Valve Speeds Achievement of Deep Vacuum, Improved Internal Oiling System Design Extends Life and Improves Vacuum Performance, Improved Materials Selection Including Hardness and Additives, Reduces Wear and Prevents Galling, Sure-Grip Handle Ergonomically Designed for Superior Comfort and Portability
Frequency
60/50 Hz
Product Type
Vacuum Pump
Includes Gas Ballast
Gas Ballast Included
Warranty
1 yr
Horsepower
1/3 hp
Mobility
Handle
Operating Temperature - Maximum
125 Degrees F
Motor Speed
3,440 RPM
Ultimate Vacuum
50 micron
Number of Inlet Ports
3
Includes Sightglass
Sightglass Included
Includes Oil Mist Filter
Oil Mist Filter Included
Operating Temperature - Minimum
32 Degrees F
Series
Pro-Set(R)
Inlet 1 Port Connection Type
SAE
A2L Compatibility
Not A2L Compatible
Number of Stages
One-Stage
Inlet 2 Port Connection Type
SAE
Inlet 3 Port Connection Type
ACME

Description

Vacuum Pump, 4 cfm Displacement, 1/3 hp HP, Inlet Port Size 1/2 in ACME, 1/4 in SAE, 3/8 in SAE, Voltage 110 to 120V AC; 220V AC, 50/60 Hz Hz, 50 micron End Vacuum, Overall Length 12.2 in, Overall Height 9.6 in, Overall Width 5 in, Weight 15 lb, Oil Capacity 16 oz, Body Material Aluminum, Special Features Extreme Shock Resistance
