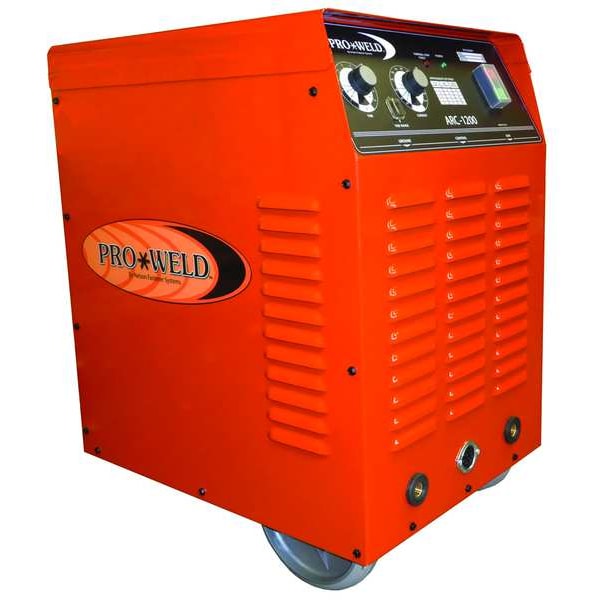

Drawn Arc Stud Welder, Stud Range 10-5/8"
Mfr # ARC 1200 HD
Zoro # G2196148
product price:Â
$
16,449.99
/ea
Additional $140.00 delivery surcharge applies per item.
Key Features
Series
ARC 1200 HD
Includes
Ground Cable, Power Control Unit, Weld Gun
Input Voltage
230 V AC, 460 V AC, 575 V AC
Features
Compact Lightweight Stud Welder Capable of Welding Studs Through 1/2 in Diameter, Designed And Built In The USA, Diagnostic LED, Short Cycle Capability, Stepless Time Adjustment With Digital Display for Precisemess and Repeatability
Phase
Three-Phase
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ARC 1200 HD
- Zoro #
- G2196148
- UPC #
- -
- Country of Origin
- United States
- Item
- Stud Welder
- Series
- ARC 1200 HD
- Includes
- Ground Cable, Power Control Unit, Weld Gun
- Input Voltage
- 230 V AC, 460 V AC, 575 V AC
- Features
- Compact Lightweight Stud Welder Capable of Welding Studs Through 1/2 in Diameter, Designed And Built In The USA, Diagnostic LED, Short Cycle Capability, Stepless Time Adjustment With Digital Display for Precisemess and Repeatability
- Phase
- Three-Phase
- Welding Processes
- Stud Welding
- Duty Cycle
- 1/2 in 8/min, 1/4 in 20/min, 3/8 in 13/min, 5/16 in 15/min, 5/8 in 4/min
- Output Range
- 400 - 1300A
- Transformer Rating
- 1300A
- Fusing
- 120/60/50
- Timing Control
- .06 - 1.0 Seconds
- Stud Range
- #10 - 5/8 in
- Weld Rate
- 15 per minute (5/16), 20 per minute (1/4 in)
- Work Cable
- 1/0 x 25 ft
- Input Frequency
- 50/60 Hz
- Color
- Orange
- For Material Type
- Aluminum, Mild Steel, Stainless Steel
- Rated Output Range
- 1300 A at 40V DC
- Weight
- 194 lb
- Stud Welding Process
- Drawn Arc
Description
Stud Welder, Duty Cycle 1/2 in 8/min, 1/4 in 20/min, 3/8 in 13/min, 5/16 in 15/min, 5/8 in 4/min, For Maximum Material Thickness 5/8 in, For Minimum Material Thickness #10, For Material Type Aluminum, Mild Steel, Stainless Steel, Input Voltage 230 V AC, 460 V AC, 575 V AC, Phase Three-Phase, Rated Output Range 1300 A at 40V DC, Stud Welding Process Drawn Arc, Weld Rate 15 per minute (5/16), 20 per minute (1/4 in), Series ARC 1200 HD, Welding Processes Stud Welding
