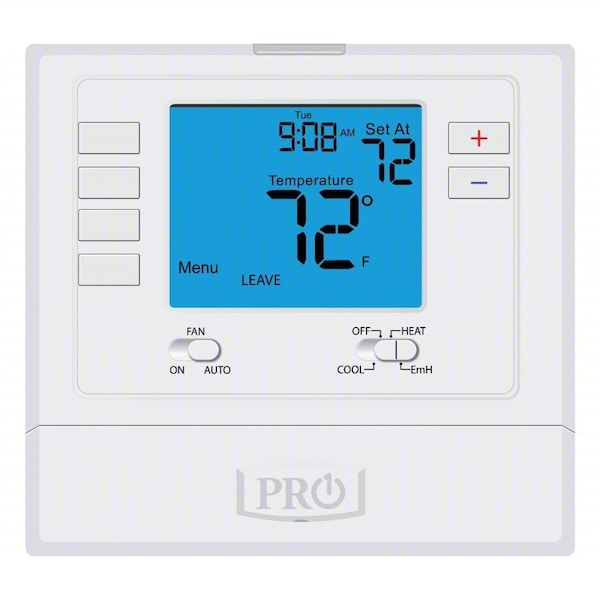

Shop PRO1 IAQ

Heat Pump / Conventional, 5-1-1 Programs, 2 H, 1 C, Wall Mount, Hardwired/Battery, 24VAC

  • Mfr # T725

  • Zoro # G1883108

product price:
$
110.39
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal or Vertical
Mounting Location
Wall
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T725
Zoro #
G1883108
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4 13/32"
Width
4 45/64"
Depth
1 7/64 in
Display Size
4 sq in
Screen Width
4 in
Screen Height
4 in
Overall Height
4 3/8 in
Overall Width
4 11/16 in
Digit Size
Easy Read
Overall Depth
1 1/8 in

Details

Item
Heat Pump / Conventional
Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal or Vertical
Mounting Location
Wall
Color
White
Control Range
44 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off-Emergency
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired/Battery
750mV Compatible
No
Programs per Week
5-1-1
WiFi Capability
No
Battery Backup
Yes
Temporary Program Override
Yes
Dehumidification Control
No
Low Battery Indicator
YES
Temporary Temperature Hold
Yes
Includes
Manual/Install Guide, Mounting Hardware
Features
Programmable Heat Pump
Remote Sensing Capability
No
Humidification Control
No
Temp. Settings per Day
4
Temperature Limiting
Yes
For Use With
Heating and Cooling
Key Pad Lockout
No
Automatic Changeover
No
Fan Switching
Auto-On
Filter Indicator
Yes
Display Color
Blue
Batteries Included
Yes
Display Type
Backlit
Terminal Designations
B, C, E, G, O, R, W2, Y
Programmable Fan
No
Control Type
Push Button
Stages
1H/1C Conventional, 2H/1C Heat Pump
Temperature Control Range
44 Degrees to 90 Degrees F
Thermostat Type
Low Voltage
Differential Type
Adjustable
Temperature Sensitivity
+/-1 Degrees F
Number of Heating Stages - Conventional System
1
Mounting Direction/Shape
Square
Operating Temperature Range
32 Degrees to 105 Degrees F
Backlit Screen Color
Blue
Temperature Scale
Fahrenheit/Celsius
Includes Batteries
Yes
Minimum Control Temperature
44 Degrees F
Shape
Square
Smart Connectivity
No Connectivity
Application/Stages
Heat and Cool; 1H/1C Conventional, 2H/1C Heat Pump
Maximum Control Temperature
90 Degrees F
Number of Cooling Stages - Conventional System
1
Backlit Screen
Yes
Battery Type
(2) AA Batteries
Programming Capability
5-1-1, 7 Day
Temperature Differential
0.2 Degrees to 2.0 Degrees F
Number of Cooling Stages - Heat Pump System
1
Number of Heating Stages - Heat Pump System
2
Includes Positive Off
Yes
Filter Change Reminder
Yes
Temperature Readout
Yes
Minimum Operating Temperature
32 Degrees F
System/Fan Settings
Cool-Emergency Heat-Heat-Off/Auto-On
Temperature settings per day
4
Maximum Operating Temperature
105 Degrees F
Changeover Type
Manual
Electrical Connection Type
Hardwired
Millivolt Compatible
No
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Millivolt
Application
Heat and Cool
Differential Heat
0.2 Degrees F, 2 Degrees F
Fan Settings
Auto-On
Housing Color
White
Maximum Operating Humidity
90 %
System Settings
Cool-Emergency Heat-Heat-Off
Frequency
50 Hz, 60 Hz
Mounting Direction
Horizontal; Vertical
Differential Cool
0.2 Degrees F, 2 Degrees F

Description

Low Voltage Thermostat, Stages Heat 2, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 5-1-1, Terminal Designations B, C, E, G, O, R, W2, Y, WiFi Capability No, System Switching Heat-Off-Cool-Emergency, Fan Switching Auto-On, Display Size 4 sq in, Display Type Backlit, Display Color Blue, Key Pad Lockout No, Programmable Fan No, Automatic Changeover No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability No, Temporary Program Override Yes
