  11. Low Voltage Thermostat, 2 H, 1 C, Hardwired/Battery, 24VAC

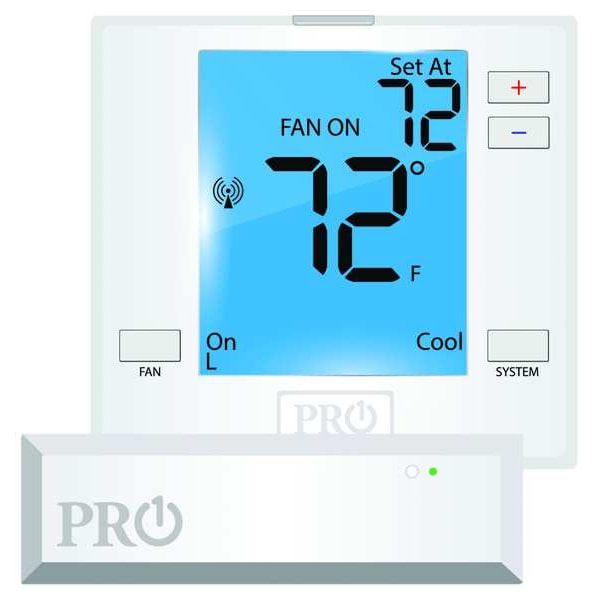

Pro1 Iaq Low Voltage Thermostat, 2 H, 1 C, Hardwired/Battery, 24VAC T731W - main

Low Voltage Thermostat, 2 H, 1 C, Hardwired/Battery, 24VAC

  • Mfr # T731W

  • Zoro # G7758916

product price: $233.43
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
2
Color
White
Control Range
44 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T731W
Zoro #
G7758916
UPC #
-
Country of Origin
Mexico

Dimensions

Height
5 1/4"
Width
5 1/4"
Depth
3 1/2 in
Overall Height
4 3/8 in
Overall Depth
1 1/16 in
Digit Size
Easy Read
Overall Width
4 11/16 in

Details

Item
Low Voltage Thermostat
Voltage
24VAC
Stages Heat
2
Color
White
Control Range
44 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired/Battery
750mV Compatible
No
Temporary Program Override
No
Automatic Changeover
Yes
Dehumidification Control
No
Filter Indicator
No
Temperature Limiting
Yes
Fan Switching
Auto-On
Temporary Temperature Hold
No
Battery Backup
Yes
Key Pad Lockout
No
Includes
(2) AA Batteries, Screws and Wall Anchors
Terminal Designations
R, C, Y, W, O, B, GH, GL
Humidification Control
No
Display Type
Digital
Programmable Fan
No
Occupancy Sensor
No
Control Type
Push Button
Low Battery Indicator
No
Batteries Included
Yes
Stages
1H/1C Conventional, 2H/1C Heat Pump
Programming Capability
Not Programmable
Maximum Control Temperature
90 Degrees F
Thermostat Type
Low Voltage
Number of Cooling Stages - Heat Pump System
1
Mounting Direction
Horizontal, Vertical
Differential Type
Adjustable
Number of Heating Stages - Conventional System
1
Minimum Operating Temperature
32 Degrees F
Battery Type
(2) AA Batteries
Mounting Direction/Shape
Square
Temperature Scale
Fahrenheit/Celsius
Includes Positive Off
Yes
Amperage
1.5 A
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Millivolt, PTAC
Millivolt Compatible
No
Temperature Control Range
44 Degrees to 90 Degrees F
Maximum Operating Temperature
105 Degrees F
Number of Heating Stages - Heat Pump System
2
Filter Change Reminder
No
Maximum Operating Humidity
90 %
Temperature Differential
0.2 Degrees F to 2 Degrees F
Application
Heat and Cool
System/Fan Settings
Cool-Heat-Off/Auto-On
Number of Cooling Stages - Conventional System
1
Operating Temperature Range
32 Degrees to 105 Degrees F
Changeover Type
Automatic
Number of Switches
1
Shape
Square
Frequency
50 Hz, 60 Hz
Minimum Control Temperature
44 Degrees F
Electrical Connection Type
Hardwired
System Settings
Cool-Heat-Off
Fan Settings
Auto
Remote Control Functions
No Remote Control Included
Backlit Screen Color
Blue
Temperature Sensitivity
+/-1 Degrees F
Housing Color
White

Description

Low Voltage Thermostat, Heat and Cool, Automatic, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Millivolt, PTAC, Push Button, Dehumidification Control No, Differential Type Adjustable, Digit Size Easy Read, Digital, Dual Transformer Compatible No, Fan Settings Auto, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 44 Degrees F, Maximum Control Temperature 90 Degrees F
