Natural Kel-F 12 L, 1.75 W
Mfr # RPCTFE1.750
Zoro # G500931856
product price:
$
938.99
/ea
Free Shipping & Returns
Key Features
Material
Kel-F
Color
Natural
Length
12
Width
1.75
Height
1.75
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RPCTFE1.750
- Zoro #
- G500931856
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Length
- 12
- Width
- 1.75
- Height
- 1.75
Details
- Material
- Kel-F
- Color
- Natural
- Weight
- 3
- Tensile Strength (psi @ 73 Deg;)
- 5700
- Tensile Elongation at Break (% @ 73 Deg: F)
- 150
- Flexural Strength (psi @ 73 Deg: F)
- 8500
- CoLT Expansion (x 10-5 in./in./Deg:F)
- 7
- Heat Deflection Temp. (264 psi) Deg:F
- 167
- Thermal Conductivity (BTU-in/ft²-hr-°F)
- 1
- Max. Recommended Use Temp (Deg:F)
- 350
- Specific Gravity (73 Deg: g/cm3)
- 2.1
- Dielectric Strength (volts/mil)
- 500
Description

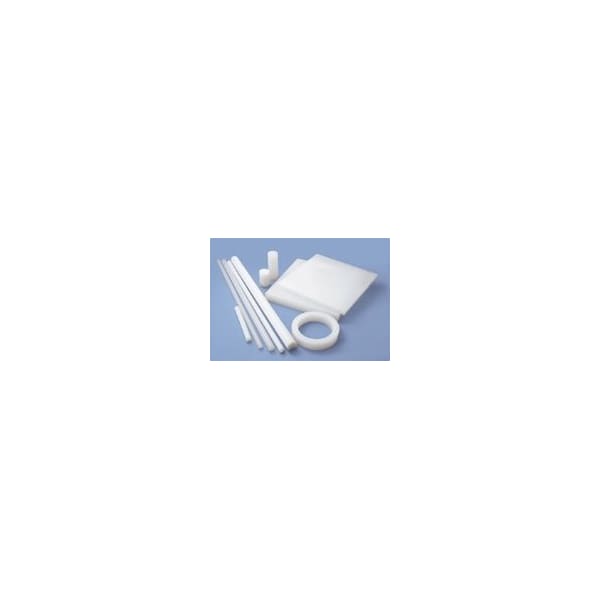

Kel-F - PCTFE (PolyChloroTriFluoroEthylene) Kel F is a fluorocarbon-based polymer and is commonly abbreviated PCTFE. PCTFE offers the unique combination of physical and mechanical properties, nonflammability, chemical resistance, near zero moisture absorption, and excellent electrical properties. These characteristics cannot be found in any other thermoplastic fluoropolymer with a useful temperature range of -400°F to +400°F. PCTFE also has extremely low outgassing, making it well suited for use in aerospace and flight applications. Note: Kel-F® is a registered tradename of 3M Company. In 1996, 3M discontinued manufacturing of Kel-F & today, all PCTFE resin is manufactured by Daikin under the tradename of Neoflon ® or by Allied Signal under the tradename of Aclon ®. Kel-F is still the most commonly used tradename used to describe PCTFE. Standard Extruded Rod Lengths are 6 Feet Long (1828mm) - rods can be cut as needed Large Diameter Compression-Molded Rods & Tubes are typically 1 Foot Long (305mm)
