Nylatron GS Sheet - Extruded, 0.750 Thick, 24 X 24
Mfr # SNYLMD.750EXTQ-24X24
Zoro # G900913193
product price: $433.99
/ea
Free Shipping & Returns
Key Features
Material
Nylon
Height
0.75
Length
24
Weight
38
Width
24
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SNYLMD.750EXTQ-24X24
Zoro #
G900913193
UPC #
-
Country of Origin
Multiple
Dimensions
Height
0.75
Length
24
Width
24
Details
Material
Nylon
Weight
38
UL94 Flammability Rating Method: UL 94
V-2
Heat Deflection Temp. (264 psi) Deg:F
200
Dielectric Strength (volts/mil)
350
Tensile Strength (psi @ 73 Deg;)
12500
Tensile Elongation at Break (% @ 73 Deg: F)
25
CoLT Expansion (x 10-5 in./in./Deg:F)
4
Flexural Strength (psi @ 73 Deg: F)
1700
Specific Gravity (73 Deg: g/cm3)
1.16
Thermal Conductivity (BTU-in/ft²-hr-°F)
1.7
Max. Recommended Use Temp (Deg:F)
220
Description

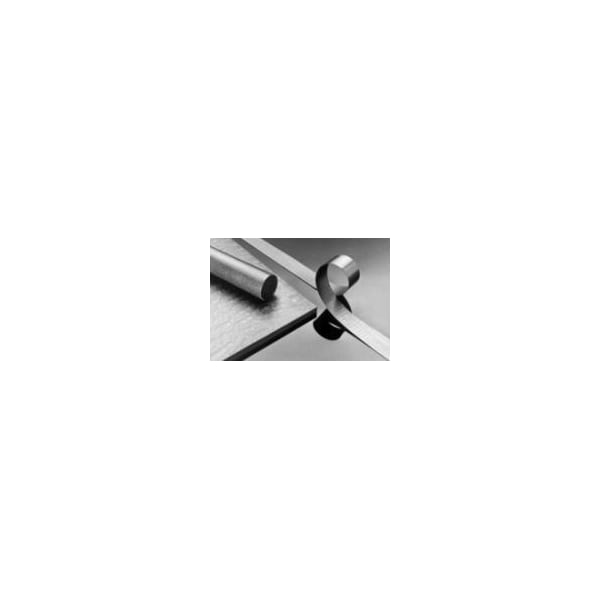

Nylatron® GS is a molybdenum disulphide (MoS2) filled nylon offering improved strength and rigidity. With a lower coefficient of linear thermal expansion than Nylon 101. Nylatron GS is the Extruded Grade, whereas Nylatron GSM is the Cast Grade. For thicker plates and large diameter rods, see Nylatron GSM (cast material)
