Nylon 48 L, 3.5 W
Mfr # RNYLMD1.750X96.000EXTQ
Zoro # G900931180
product price:
$
209.99
/ea
Free Shipping & Returns
Key Features
Material
Nylon
Length
48
Width
3.5
Height
1.75
Weight
11
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RNYLMD1.750X96.000EXTQ
- Zoro #
- G900931180
- UPC #
- -
- Country of Origin
- Multiple
- Material
- Nylon
- Weight
- 11
- Dielectric Strength (volts/mil)
- 350
- CoLT Expansion (x 10-5 in./in./Deg:F)
- 4
- Max. Recommended Use Temp (Deg:F)
- 220
- Thermal Conductivity (BTU-in/ft²-hr-°F)
- 1.7
- Tensile Strength (psi @ 73 Deg;)
- 12500
- Tensile Elongation at Break (% @ 73 Deg: F)
- 25
- Specific Gravity (73 Deg: g/cm3)
- 1.16
- Heat Deflection Temp. (264 psi) Deg:F
- 200
- Flexural Strength (psi @ 73 Deg: F)
- 1700
- UL94 Flammability Rating Method: UL 94
- V-2
Description

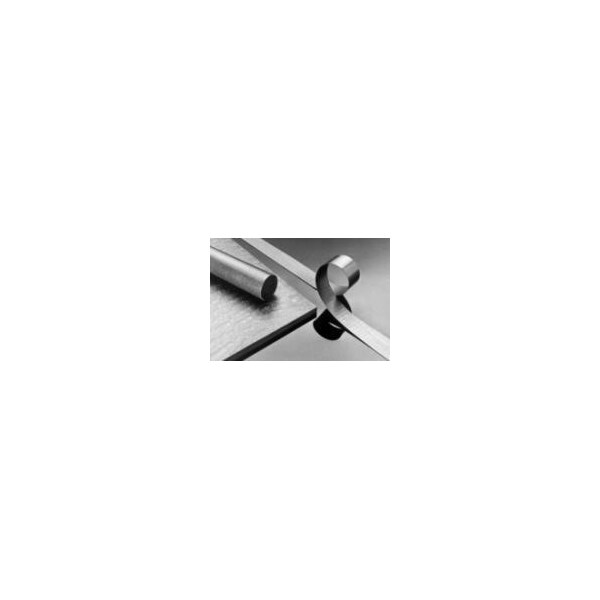

Nylatron® GS is a molybdenum disulphide (MoS2) filled nylon offering improved strength and rigidity. With a lower coefficient of linear thermal expansion than Nylon 101. Nylatron GS is the Extruded Grade, whereas Nylatron GSM is the Cast Grade. For thicker plates and large diameter rods, see Nylatron GSM (cast material)
