Professional Plastics

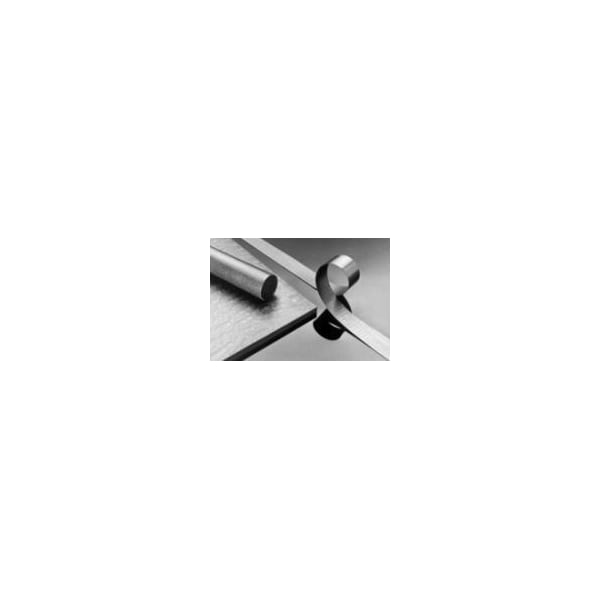

Nylon MD Sheet - Extruded 6/6, 0.062 Thick, 24 X 48


product price: $59.89
/ea

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Height 0.062
  • Material Nylon
  • Weight 4
  • Width 24
  • Length 48
See all product information

Product Information

Dimensions

Height 0.062
Width 24
Length 48

Details

Material Nylon
Weight 4
Tensile Strength (psi @ 73 Deg;) 10500
Max. Recommended Use Temp (Deg:F) 220
CoLT Expansion (x 10-5 in./in./Deg:F) 5.5
Flexural Strength (psi @ 73 Deg: F) 17000
Tensile Elongation at Break (% @ 73 Deg: F) 40
Specific Gravity (73 Deg: g/cm3) 1.15

Description

Nylon® MD (extruded type 6/6) is a nylon and molybdenum disulfide (MoS2) composition designed to improve the mechanical, thermal and bearing properties to type 6/6 nylon while maintaining its basic electrical and chemical characteristics. Through compounding, finely divided particles impart extra lubricity to this nylon, permitting Nylon MD parts to operate with little or no lubrication. This makes it especially suited to applications where external lubrication is impractical, contaminating or difficult to maintain. The added lubricity also contributes dramatically to component service life, making Nylon MD a very cost-efficient choice. Nylon MD provides non-galling and non-scratching characteristics, sound dampening qualities, insulating properties, resistance to oils, greases, most alkalies, solvents, and organic acids For very large and complex shapes, consider Cast Nylon MD (type 6).

Restrictions
