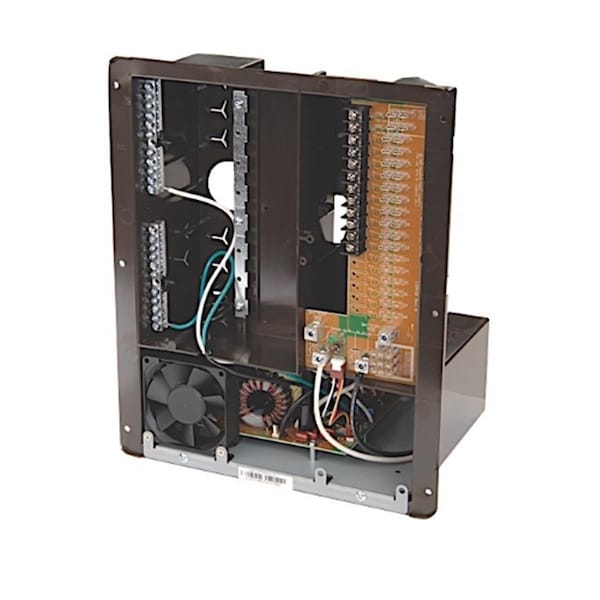

75A Replacement Section for Power Center

The AC distribution panel is rated for 240 V AC at 50 amps Provisions for up to 12 branch circuit breakers plus a center feed dual 50 amp main breaker (not included) 12 Built in push and lock strain relief wiring connectors Attractive lightweight panel design made from black impact resistant high temperature polymers Top two fuse holders recommended for low current devices such as smoke and carbon monoxide detectors Optional 12 branch fuse holders with 2 30 amp circuits or 18 branch fuse holders with 4 30 amp circuits Maximum rating 20 amps on remaining circuits with optional wire tail connections Optional l E D Indicators identify which fuse is blown Converter charger section is accessible from the front Converter charger ratings of 60 75 & 90 amps which is the largest rating in the industry Easy access reverse battery protection fuses Optional dc disconnect tie in Features Reverse battery protection Electronic current limiting High and low AC input protection Intelligent variable speed cooling fan Automatic thermal protection Press open door for easy access to circuit breakers Front access to large wiring compartment Optional DC ground bus can be user installed in the DC wiring compartment Specifications Color Black Current in Amps 75A Panel Size 10 125 x 13 25" Weight 6 lbs
