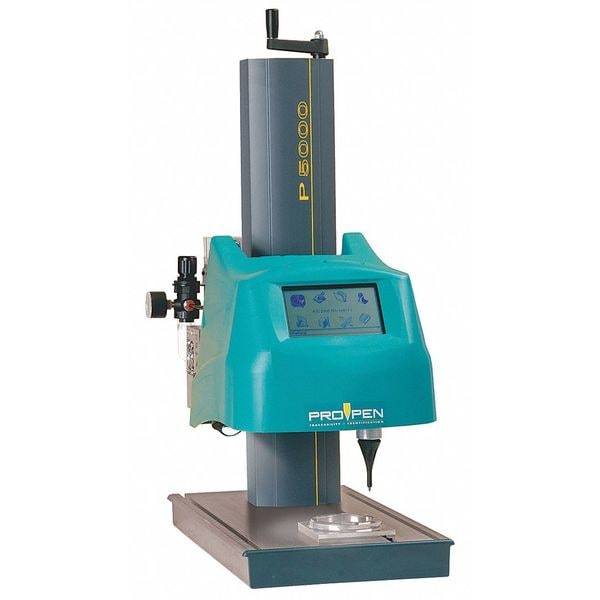

Benchtop Dot Peen Marking Machine (78702), Pneumatic Percussion Marking
Mfr # 78702
Zoro # G0506698
product price: $9,347.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.
Key Features
Hz
50/60
Character Height
0.02 in to 3.937 in
Voltage
110/230V
Phase
Single
Marking Area
4-5/16 in x 1-1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
78702
Zoro #
G0506698
UPC #
-
Country of Origin
France
Dimensions
Character Height
0.02 in to 3.937 in
Cutter Dia.
7/64 in
Overall Width
12 7/8 in
Marking Depth
0.005 in to 0.015 in
Overall Depth
23 3/4 in
Max. Workpiece Height
12 3/16 in
Overall Height
28 7/8 in
Character Height - Minimum
0.02 in
Character Height - Maximum
3.937 in
Marking Depth - Minimum
0.005 in
Maximum Workpiece Height
12 1/4 in
Marking Depth - Maximum
0.015 in
Cutter Diameter
7/64 in
Marking Area Width
1 1/2 in
Marking Area Length
4 3/8 in
Description
The PROPEN 78702 Pneumatic Benchtop Dot Peen Marker is a percussion marking machine designed for precise, permanent marking on metals and plastics. It operates on a pneumatic system at 79.77 psi and supports marking on aluminum, brass, copper, stainless steel, and steel up to 63 HRC. The unit provides a marking area of 4-5/16 in × 1-1/2 in with adjustable depth between 0.005 in and 0.015 in. It uses an X-Y axis motion and features a narrow-angle stylus with a carbonite cutter for consistent engraving results.
Key Features:
- Marking Area: 4-5/16 in × 1-1/2 in (X-Y axis operation)
- Marking Depth: Adjustable from 0.005 in to 0.015 in
- Character Height Range: 0.02 in to 3.937 in
- Workpiece Height Capacity: Up to 12-3/16 in
- Material Compatibility: Aluminum, brass, copper, plastic, stainless steel, steel (up to 63 HRC)
- Cutter Material: Carbonite, 7/64 in diameter
- Power Requirements: 110/230V, single phase, 50/60 Hz
- Air Pressure Requirement: 79.77 psi
- Interface: P05 internal software, RS232, and dual USB ports
- Features: Turnkey Z-axis, narrow-angle stylus, start-up CD included
- Noise Level: 81.4 dB
- Dimensions: 28-7/8 in H × 12-7/8 in W × 23-3/4 in D
