For Use With
Mfr. No. PLS-W-S-1-0-0-0-0

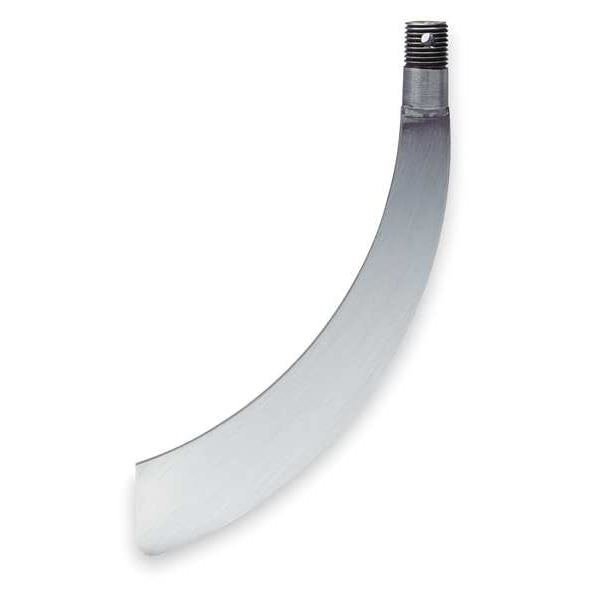

Special Features
Minimum Bulk Density of 30 Pounds per Cubic Foot
Switch Type
SPDT or optional DPDT snap switch.
Features
Minimum Bulk Density of 30 lb/cu ft (481 kg/cu m)
Process Connection
1-1/4" male NPT. Optional flange.
Enclosure Rating
Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G.
Agency Approvals
cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations.
Pressure Limit
30 psig (2.07 bar) maximum for .5 micron or larger material.
Conduit Connection
3/4" female NPT.
Electrical Rating
15 A @ 120.
Wetted Materials
Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS.
Power Consumption
Weatherproof models: 5 watts, Explosion-proof models: 3 watts.
Service
Dry powder or bulk materials compatible with wetted materials.
Temperature Limits
Standard Construction: Process: -40 to 300°F (-40 to 148.9°C), Ambient: -40 to 185°F (-40 to 85°C); High Temperature: Process: -40 to 500°F (-40 to 260°C), Ambient: -40 to 185°F (-40 to 85°C).
Compatible Product Type
Paddle Level Switch
Compatible with Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Manufacturer Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Mfr. Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use with Mfr Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use With Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Pump Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
