  9. Flowmeter, Inline, 52 GPM, 1 In.
Shop All Flowmeters
Pulsafeeder

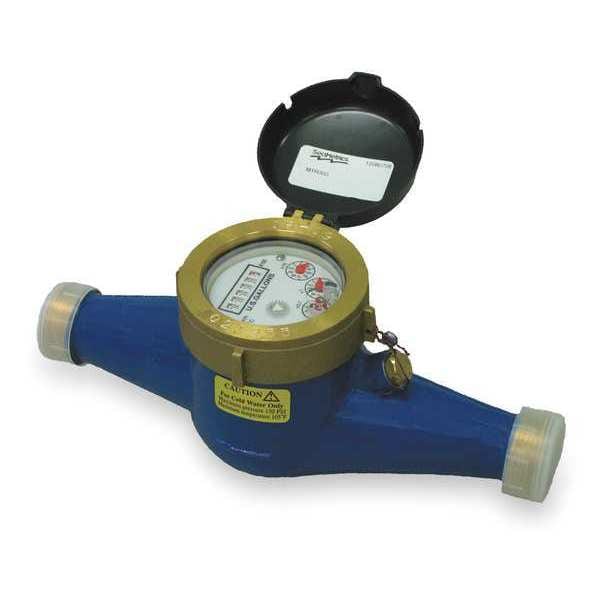

Flowmeter, Inline, 52 GPM, 1 In.

product price: $438.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Inline
  • Housing Material Brass
  • For Pipe Size 3/4 to 2 in
  • Flow Material Water
  • Connection Size 1 in
See all product information

Product Information

Dimensions

For Pipe Size 3/4 to 2 in
Connection Size 1 in
Length 15 5/8 in
Connection Size (In.) 1 MNPT
Length (In.) 15-5/8"
Cable Length 12 ft
Overall Length 15 in

Details

Item Mechanical Flowmeter
Type Inline
Housing Material Brass
Flow Material Water
Connection Type NPT
Max. Pressure 150 psi
Max. Viscosity 31 SUS
Wetted Materials Bronze, Thermoplastic
Flow Range 0.44 to 52 gpm
Fluid Temp. Range 35 Degrees to 105 Degrees F
Display 5 Digit
Max. Pressure (PSI) 150
Flow Range (GPM) 0.44 to 52
Thread Male Pipe
Max. Temp. (F) 105
Accuracy (%) 1.5
GPM Max. 52 gpm
Flow Range @ GPM of Water 0.44 to 52
Shaft Material Tungsten Steel
Output Type Scaled Pulse
Seal Material Natural Rubber
Standards AWWA C-708
Display Type Analog
Product Type Water Meter
Mounting Orientation Universal
Flow Rate - Maximum 50 gpm
Viscosity - Maximum 31 SUS
Media Temperature - Maximum 105 Degrees F
Includes Flow Rate Adjustment Knob No
Includes Totalizer Yes
Rotor Material Plastic
Unit Of Measure Gallons
Voltage - Maximum 24V DC
Compatible Flow Material Water
Accuracy +/-1.5%
O-Ring Material Natural Rubber
Includes Pressure Gauge No
Operating Pressure - Maximum 150 psi
Wetted Material Bronze, Thermoplastic
Media Temperature - Minimum 35 Degrees F
Flow Rate - Minimum 0.75 gpm

Description

Mechanical Flowmeter, Product Type Water Meter, Accuracy +/-1.5 Percent, Connection Size 1 in, Connection Type NPT, Compatible Flow Material Water, Media Temperature - Maximum 105 Degrees F, Media Temperature - Minimum 35 Degrees F, Viscosity - Maximum 31 SUS, Voltage - Maximum 24V DC, Housing Material Brass, Rotor Material Plastic, O-Ring Material Natural Rubber, Seal Material Natural Rubber, Shaft Material Tungsten Steel, Wetted Material Bronze, Thermoplastic, Standards AWWA C-708

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
